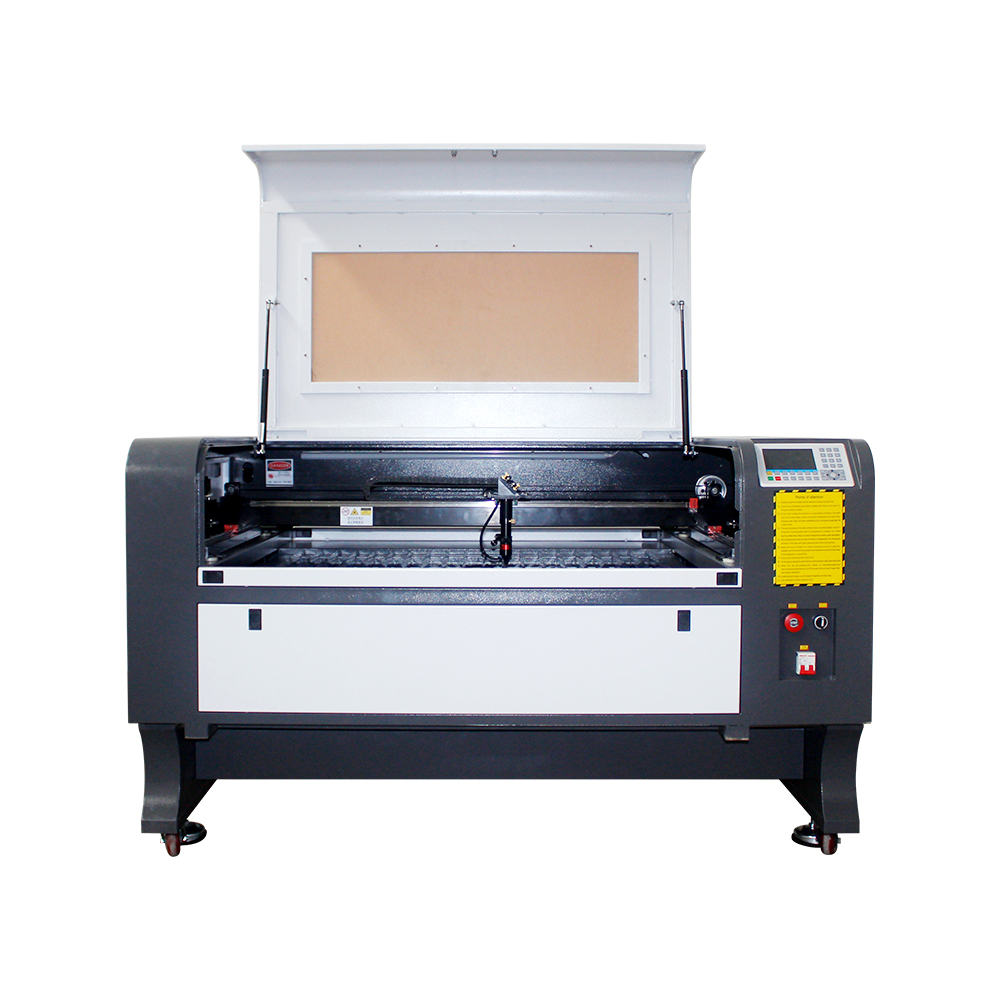

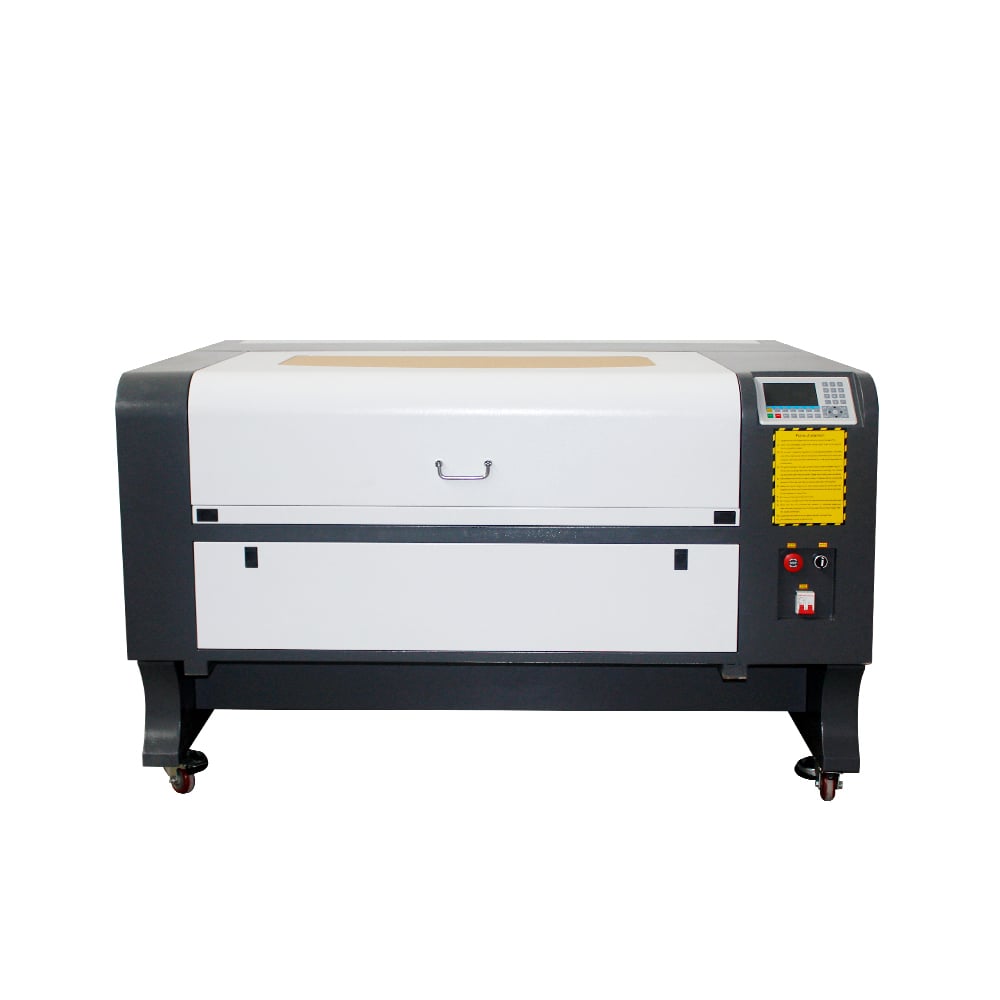

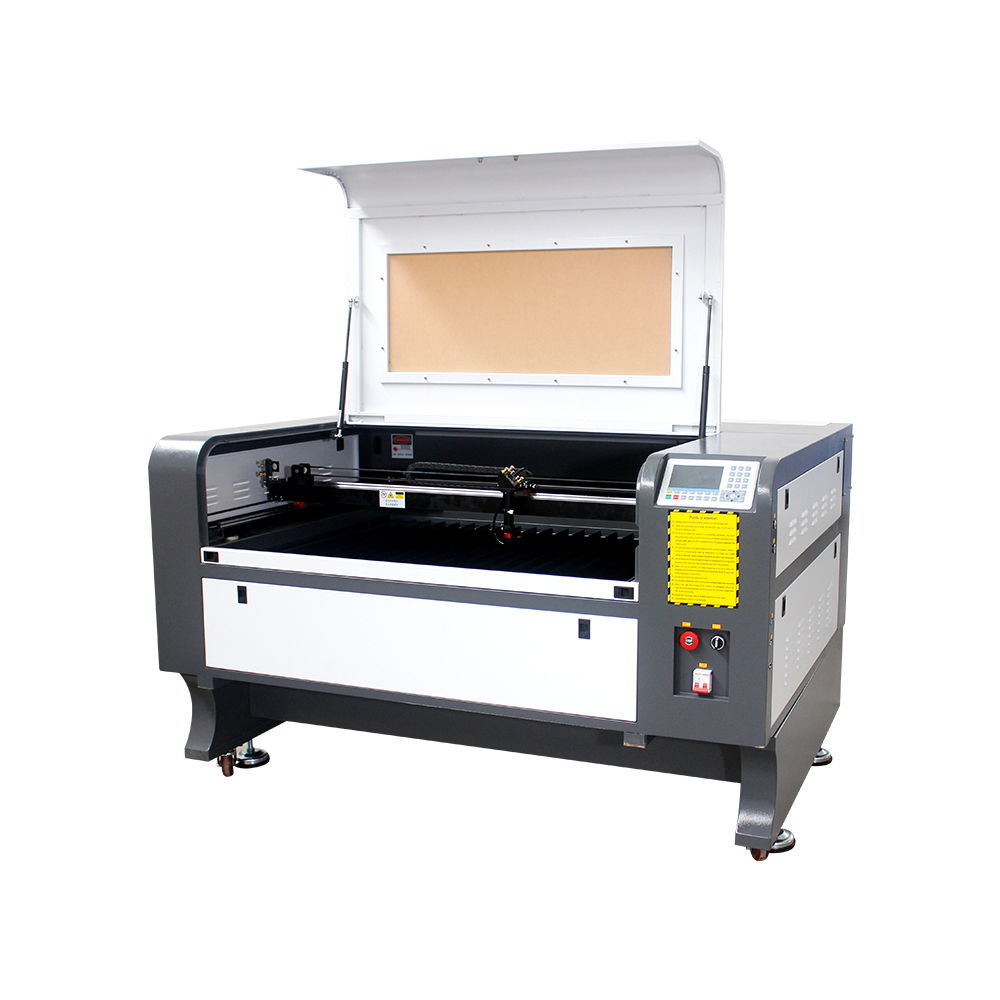

Model: XM-1080
Working area:1000*800mm
Laser Type: CO2
Engraving Speed: 500mm/s Max
Graphic Format Supported: PLT, DXF, BMP, JPG, GIF, PGN, TIF
Cooling Mode:water-cooling
Dimension(L*W*H)：1570*1180*1060mm
|
Minimum Order Quantity: |
1 |
|
Packaging Details: |
1.Whole film packaging Sheet laser machine; 2.Anti-collision package edge; 3. Fumigation-free plywood wooden box and pallets with iron binding belt. |
|
Delivery Time: |
3-14Days |
|
Payment Terms: |
TT (Telegraphic Transfer), Western Union, Paypa, Alibaba Trade Assurancel. |
|
Supply Ability: |
2000 Set/Sets per Month |

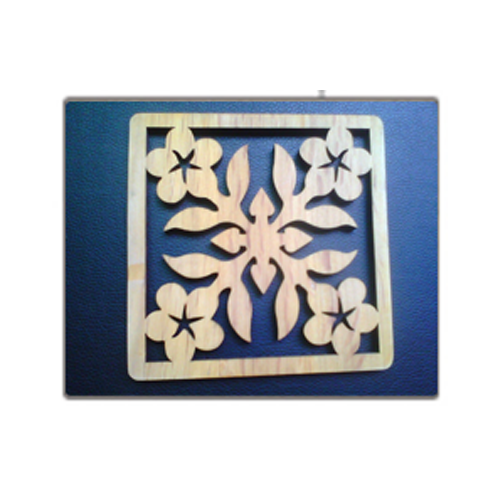

XIANMING laser CO2 Laser Engraving Cutting Machine with different working area, laser power or working table, which application is engraving and cutting on acrylic, wood, fabric, cloth, leather, rubber plate, PVC, paper and other kinds of non metal materials.1080 laser cutting machine are widely used in clothing, shoes, luggage, computer embroidery clipping, model, electronic appliances, toys, furniture, advertising decoration, packaging and printing, paper products, handicrafts. Household appliances, laser processing and other industries.

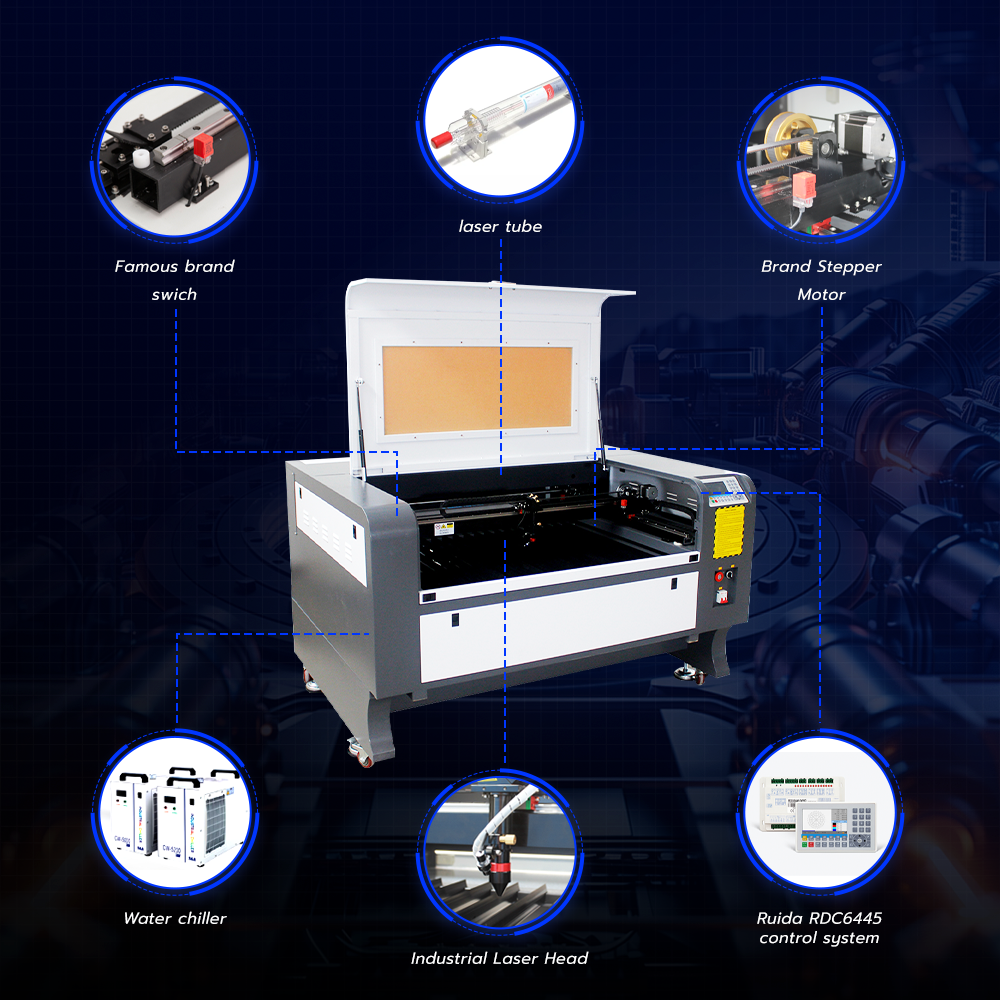

Closed Co2 laser tube, long life stable power. Installation of reinforcement settings, the laser tube is not easy to collide and cause damage when moving the machine. (EFR, RECI, CDWJ, YONGLI, JOY. Optional)
High precision retractable laser head, easy to adjust focal length, equipped with red light positioning system, accurate positioning, reduce material loss. Auto-blowing to protect laser head and prevent the laser burning
The RD6445 system is the latest generation of laser engraving/cutting control system developed by Ruida Technology. This control system has better hardware stability and better resistance to high voltage and electrostatic interference.The control panel supports Chinese, English, French, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian and other languages.
Interface: USB2.0 interface support connect to computer by USB cable, it also support offline work.
Adopt Chinese Top Brand "Leadshine" Step Motor and Driving System Numeral timing Simulation quantum control laser power. Little error, repetition high precision.
Taiwan Hiwin/PMI Linear square guide rails, higher precision with stroke limit.
Imported USA II-VI Lens, suitable for vanous environments, and has high precision and high speed.
It allows you to process materials of various sizes, can be lifted in Z direction (up-and-down) to get more working space.
XM Laser CO2 Laser Engraving Machine with different working area,laser power or working table,which application is engraving and cutting on acrylic, wood, fabric, cardboard, leather, rubber plate, paper and other kinds of nonmetal materials.
1080 CO2 laser engraving cutting machine are widely used Arts and crafts, advertising, decoration, wood working, leather manufacturing, packaging, printing, mould making, furniture, clothing and brand making and other industries.
|
Model |
XM-1080 laser cutting machine |
|
Worktable |
Honeycomb or Aluminum knife |
|
Applicable Material |
nonmetal |
|
Laser Power |
60w/80w/100w/130w/150w |
|
Engraving Speed |
500mm/s Max |
|
Engraving Area |
1000*800mm |
|
Cutting Speed |
60mm/s |
|
Graphic Format Supported |
PLT/DXF/BMP/JPG/GIF/PNG/TIF |
|
Cutting Depth(Acrylic) |
0-15mm(acrylic) |
|
Laser Tube |
Sealed CO2 glass laser tube |
|
Laser Source Brand |
EFR/RECI/YONGLI/JOY/CDWJ |
|
Water Cooling |
Yes |
|
Resolution Ratio |
0.0254mm（1000dpi） |
|
Power Supply |
220V(or110V)+/-10% 50Hz |
|
Resetting Positioning |
Accuracy less than or equal to 0.01mm |
Simple rotary axis
Standard rotary axis
S&A Water chiller CW-3000/ CW-5000
1. TWO-PART SPLIT MACHINE: Save space, save freight, through the narrow door
2. RUIDA CONTROLLER SYSTEM: Offline use, Easy to operate
3. FAMOUS LASER TUBE: EFR, RECI, CDWG, YONGLI, JOY (optional)
4. HIGH COST PERFORMANCE: The same price, the best performance and quality
5. THREE LINES LINEAR GUIDE: High accuracy, High speed
6. PASS THROUGH DOOR: Front and back feed
1.Warranty for 1 years.
2, Maintenance for whole life.
3,We will provide the consumable parts at an agency price.
4,24 hours online service,free technical support.
5,Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me.
6,We have manual instruction and CD/U disk for software installation,operation and machine's using and maintenance.
Q1. Before send me an inquiry on our cnc laser, it is better for you to provide me the following information:
1) Your metal or non-metal material size. Because in our factory, we have different models according to working area.
2) Your materials.
Metal/Acrylic/Plywood/MDF?
3)You want to engrave or cut?
If cut,could you tell me your cutting thickness? Because different cutting thickness need different laser tube power and laser power supplier.
Q2. If we don't know how to use the machine, can you teach us?
Yes. We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online helpsoftware. Or we can talk by phone,email or skype.
Q3. How long is the delivery time?
For standard machines, it would be 3-5 days; For non-standard machines and customized machines according to clien's specific requirements, it would be 7 to 10 days.
Q4. Quality Control:
The whole production procedure will be under regular inspection and strict quality control. The complete machine will be stested to make sure they can work very well before being out of factory. Our machine passed CE Certificate, meet European and American standard, were exported to more than 100 Countries.
Q5. Do you arrange shipment for the machines?
Yes. For FOB or CIF price,we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
