XM 1390 Cnc Support Longer Co2 Laser Cutting Engraving Machine for Acrylic Wood Fabric Leather Nonmetal

Introducing the XM 1390 CNC Support Longer Co2 Laser Cutting Engraving Machine from Liaocheng Xianming, a top-of-the-line device that promises precise cutting and engraving for a variety of materials including acrylic, wood, fabric, leather, and nonmetal

This innovative machine is equipped with a high-quality Co2 laser that ensures clean and efficient cuts on a wide range of materials. It has a larger cutting area of 1300mm x 900mm, allowing for bigger projects to be completed with ease. The CNC support feature ensures accurate and consistent results every time, making it ideal for both professional and hobbyist users

The XM 1390 is designed for versatility, making it a valuable addition to any workshop or production facility. Whether you're working with delicate fabrics, thick acrylics, or sturdy woods, this machine can handle it all. The powerful laser can easily cut through materials up to 20mm thick, providing endless possibilities for your projects

In addition to cutting, the XM 1390 is also capable of engraving intricate designs onto various surfaces. Create personalized gifts, branded merchandise, or intricate artwork with ease using this machine's precise engraving capabilities. The laser technology ensures crisp details and sharp lines, giving your projects a professional finish every time

Ease of use is another key feature of the XM 1390. The user-friendly interface allows for quick and simple setup, with options for customizing cutting and engraving settings to suit your specific needs. The machine is also equipped with safety features to ensure a secure working environment, giving you peace of mind as you create

The XM 1390 CNC Support Longer Co2 Laser Cutting Engraving Machine is a versatile and reliable tool for anyone looking to take their cutting and engraving projects to the next level. With its high-quality components, precision cutting capabilities, and user-friendly design, this machine is sure to impress even the most discerning users. Consider adding this powerful device to your workshop today and see the endless possibilities it can unlock for your creativity

Product Paramenters

Model	1390
Worktable	Honeycomb or blade
Eneraving area	1300900mm
Laser Power	60w/80w/ 100w/ 150w / 300w
Engraving Speed	060000mm/min
Engraving Depth	5mm
Cutting Speed	0-5000mm/min
Cutting Depth Acrylic	0-30mm acrylic
Up and down worktable	Ec Up and down 550mm adjustable
Minimum Shaping Character	1X Imm
Resolution Ratio	0.0254mm 1000dpi
Power Supply	220V (or110V) +/-10%50Hz
Resetting Positioning	Accuracyless than or equal to 0.01 mm
Water protecting sensor and alarm	Yes
Operating Temperature	0-45℃
Operating Humidity	35-70℃
Graphic Format Supported	PLT/DXF/BMP/JPG/GIF/PGN/TIF
Operation System	Windows xp/7/8/10
Software	RDWorks/LaserCAD/ATUOCAD
Engraving on Curve Surfaces Yes/No	No
Control Configuration	DSP
Water Cooling Yes/No	Yes
Maximum Height Of Materials To Engrave mm	120mm
Laser Tube	Sealed C02 glass lasertube
Machine Dimension	1840x1400x1030 mm
Packing Dimension	2040x1600x1320mm
Gross Weight	410kg

DETAIL DISPLAY

1300X900MMWORK AREAlaser cutting machinALUMINUM KNIFE To process hard materials like acrylic and so on.

1300X900MM WORK AREA

laser cutting machine

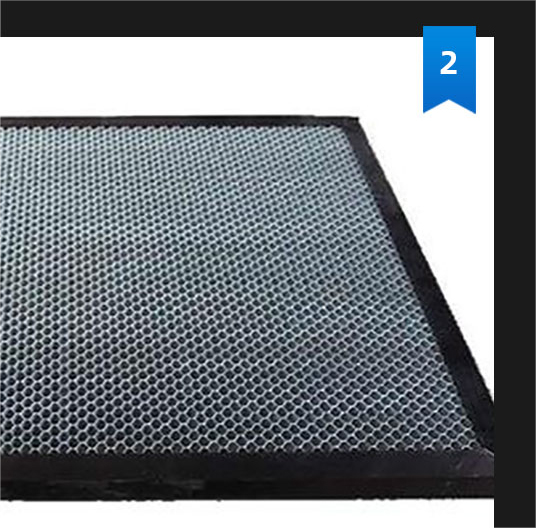

HONEYCOMB WORKTABLE

1）small holes make sure good supporting per formance which is suitable for leather cloth and other thin soft ma-terials

2）The hole of honeycomb workable is small, so the small workpiece can be placed on the table surface to be proccesed

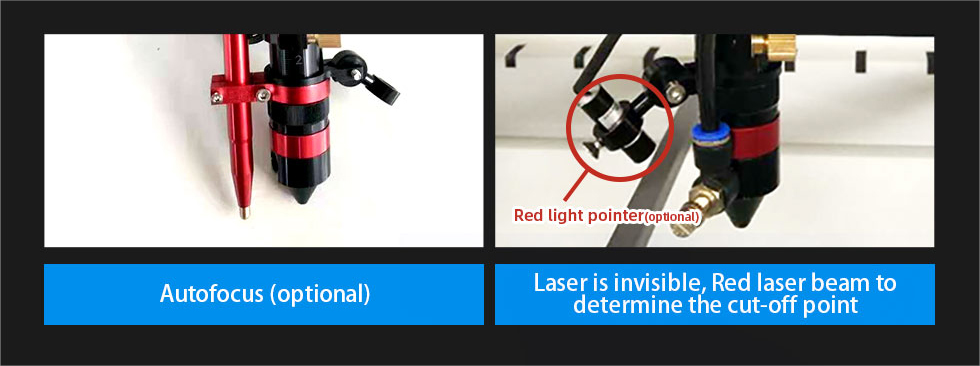

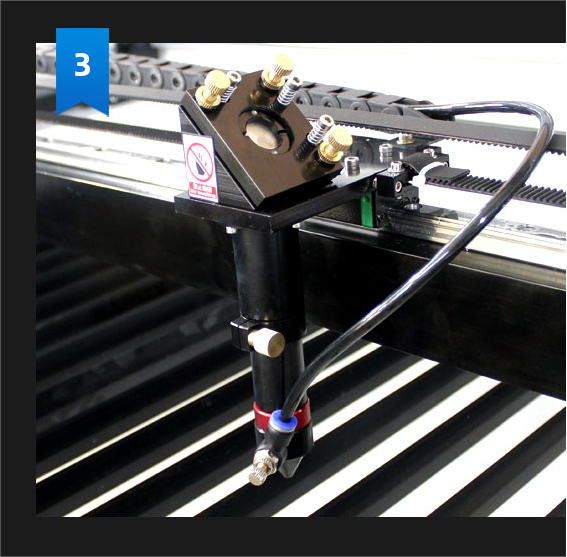

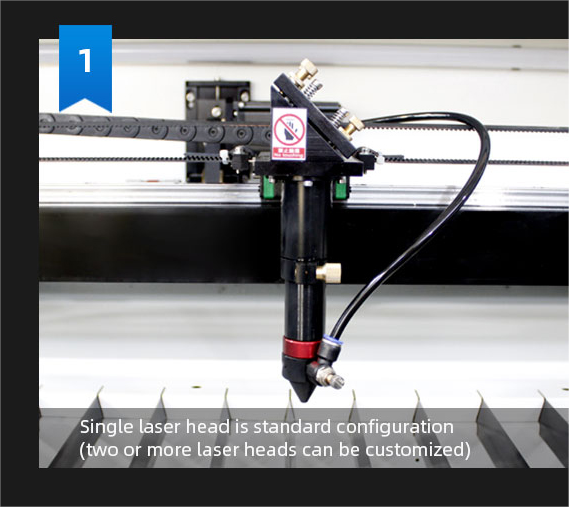

INDUSTRIAL LASER HEAD

Laser cutting machine

High precision retractable laser head, easy to adjust focal length, equipped with red light positioning system, accurate positioning, reduce materials

Auto-blowing to protect laser head and prevent the laser burning

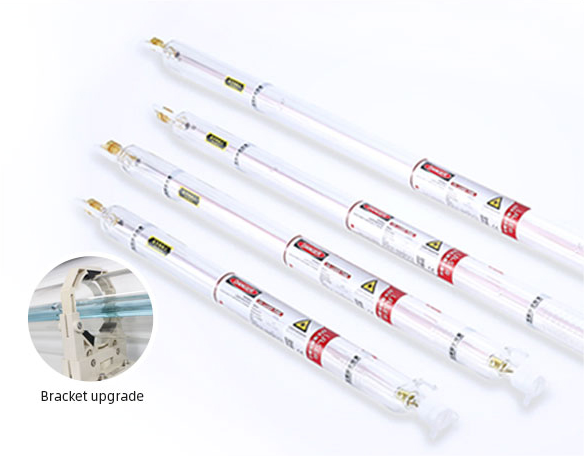

Laser Tube

laser cutting machine

Closed Co2 laser tube, long life, stable power Installation of reinforcement settings, the laser tube is not easy to collide and cause damage when moving the machine EFR, RECI, CDWJYONGLI, JOY

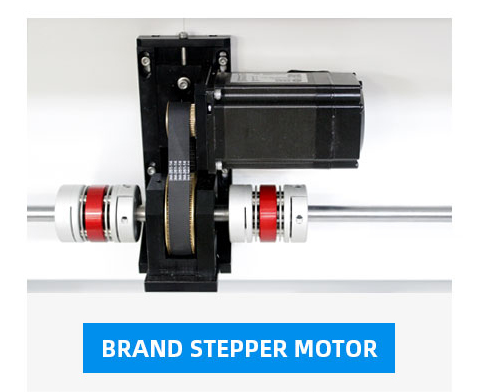

BRAND STEPPER MOTOR

High operating accuracy, high temperature resistance can bear the high temperature gen-erated by high-speed operation and low noise

1) self adaptive circuit

2) necessary accessories of offline working

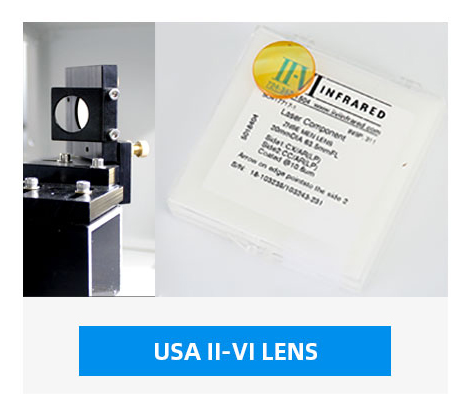

Imported USA I-VI Lens, suitable for various environments, and has high precision and high speed

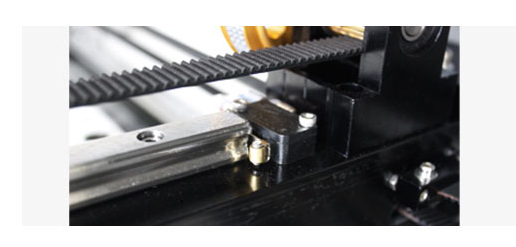

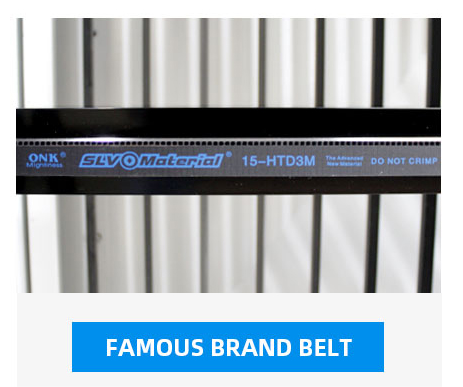

The ONK brand belt, wear resistance speed good stability, compact structure and low noise

FAMOUS BRAND SWICHVE

Laser cutting machine

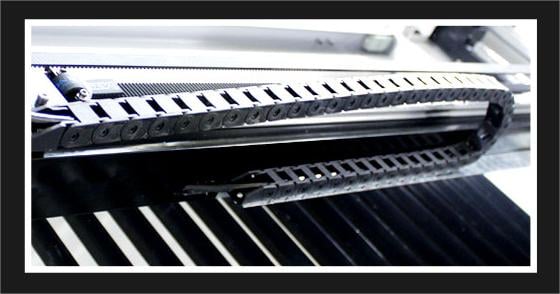

LEADING CHAIN

Laser cutting machine

The current lead and breather pipe are included in it, Thicker, more stable Keep the laser head from shaking

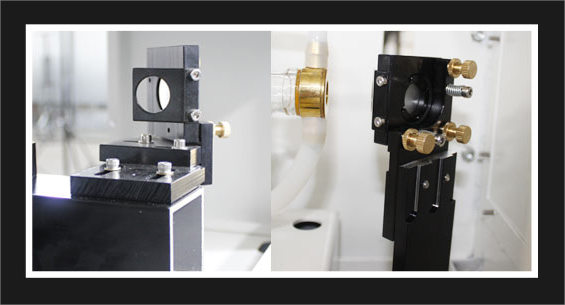

REFLECTOROE

Laser cutting machine

45°mirror adjustment set, Easy to adjust laser path

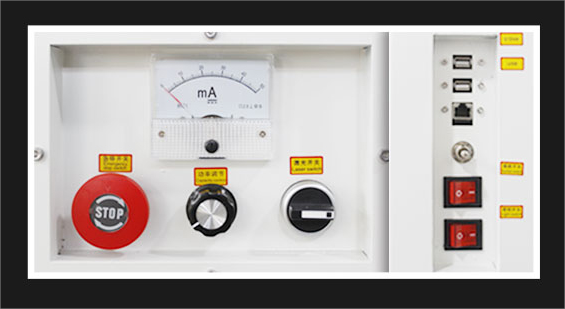

SWITCH

Laser cutting machine key switch, emergency stop, LED light

FEATURES

Laser cutting machine

1. Adopt advanced laser engraving and cutting control system: Ruida RDC6442 control svstem, the control pannel support different lanquage include Chinese English, French, Pvccko, Portuquese, Turkish, German, Spanish, Vietnamese, Korean, Italian

2. Standard RDWorksV8 software: lt support 15 different languages, include: Chinese, English, Japanese, French, German, Portuguese, Polish, Spanish, Russian, Korean, Vietnamese, Indonesian, Italian, Turkrish, Arabic can compatible with many other software, like Coreldraw, Photoshop, AutoCAD, TAIIMA. You can use these software to make designs, then import to Rdworks to cut or engrave

3. RDworks software support files in different format:

AI, DXF, PLT, DST, BMP, DSB, EPS, DAT, NC, RDB, GIF, JPG, IPEG, JPE, JFJF, PNG, MNG, ICO, CUR, TIF TIFF, TGA, PCX, WBMP, WM, EMFBG, 2CPC, PGX, RAS, PNMPGMPPM, SKARAW

4. Storage: The main board has EMS Memory which enables the user to store more than 100 files

5. Laser output control: Can regulate the laser power from 1-100% according to different material

6. Interface: USB2.0 interface support connect to computer by USB cable, it also support offline work

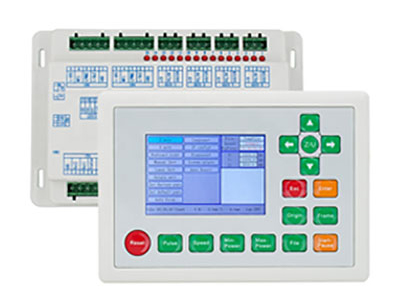

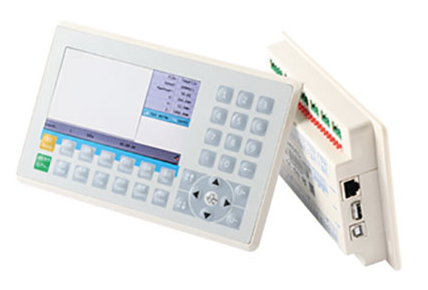

MAIN BOARD

laser cutting machine

Multi-language in LCD panel Ruida. The interface of the control panel is simple easy to learn easy to operate and the system isstable

DUSB interface

Laser cutting machine

Machine detail: Take every detail seriously to ensure that the machine is stable working during service to every customer

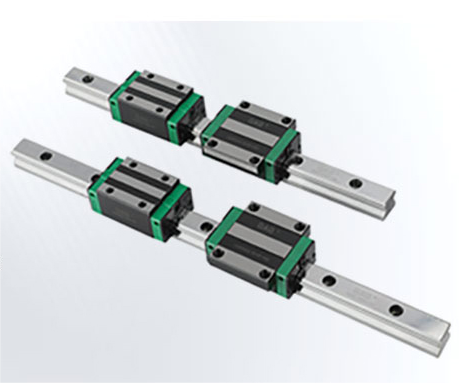

Imported linear guide

Laser cutting machine

XY axis apply imported square rails, Ensures stable operation, high precision and long life

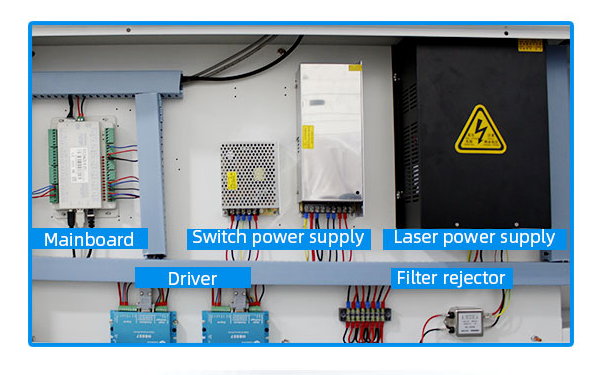

Distribution cabinet

Laser cutting machine

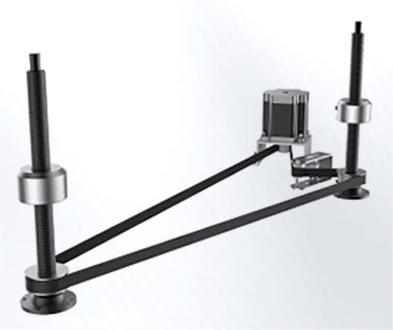

Platform lifting

Laser cutting machine

It allows you to process materials of various sizes can be lifted in Z direction up-and-down to get more working space

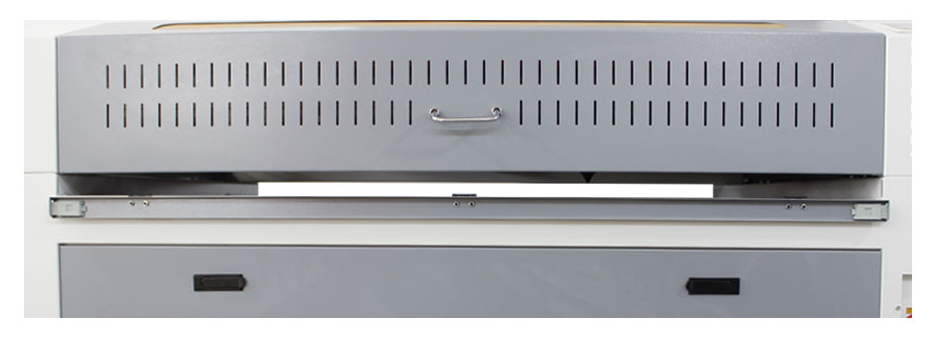

Front and back Feeding Doors

Laser cutting machine

Front and back feeding material system you can cut and engrave the material at the largest scale

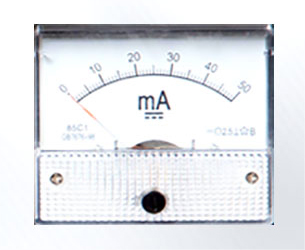

Amperemeter

Laser cutting machine

Coreldraw and CAD control directly

Advanced working software Which canbe embedded into Core draw and CAI User can operate the machine buy Coredraw or CAD software directly

Rotary fixture

Rotary fixture Can engrave degree usually applied in advertisement and craft work for column or cone work piece surface need work together with motorized Up and Down System Rotary fixture is for the circle engraving of cylindrical or column work pieces Need working together with Motorized Upand Down System

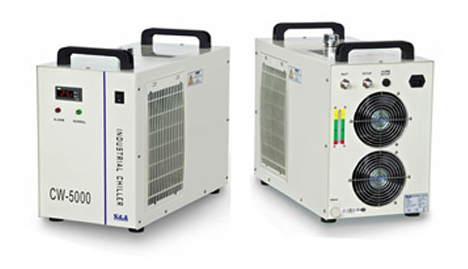

Water chillerI

Best in china it is for cooling the laser tube after Water fill in the pipe when machine is working

Exhaust fan

Removes smoke and dust caused during engraving and cutting

Our certificate

PRODUCT APPLICATION

RELIABLE PROFESSIONAL LASER EOUIPMENT SUPPLIER

Fosterlaser CO2 Laser Engraving Machine with different work in area, laser power or working table, which application is engraving and cutting on acrylic, wood, fabric, cloth, leather, rubber plate PVC, paper and other kinds of non metal materials, 1390 laser cutting machine are widely used in clothing, shoes luggage, computer embroidery clipping, model, electronic appliances, toys, furniture, advertising decoration, packaging and printing, paper products, handicrafts, Household appliances, laser processing and other industries
