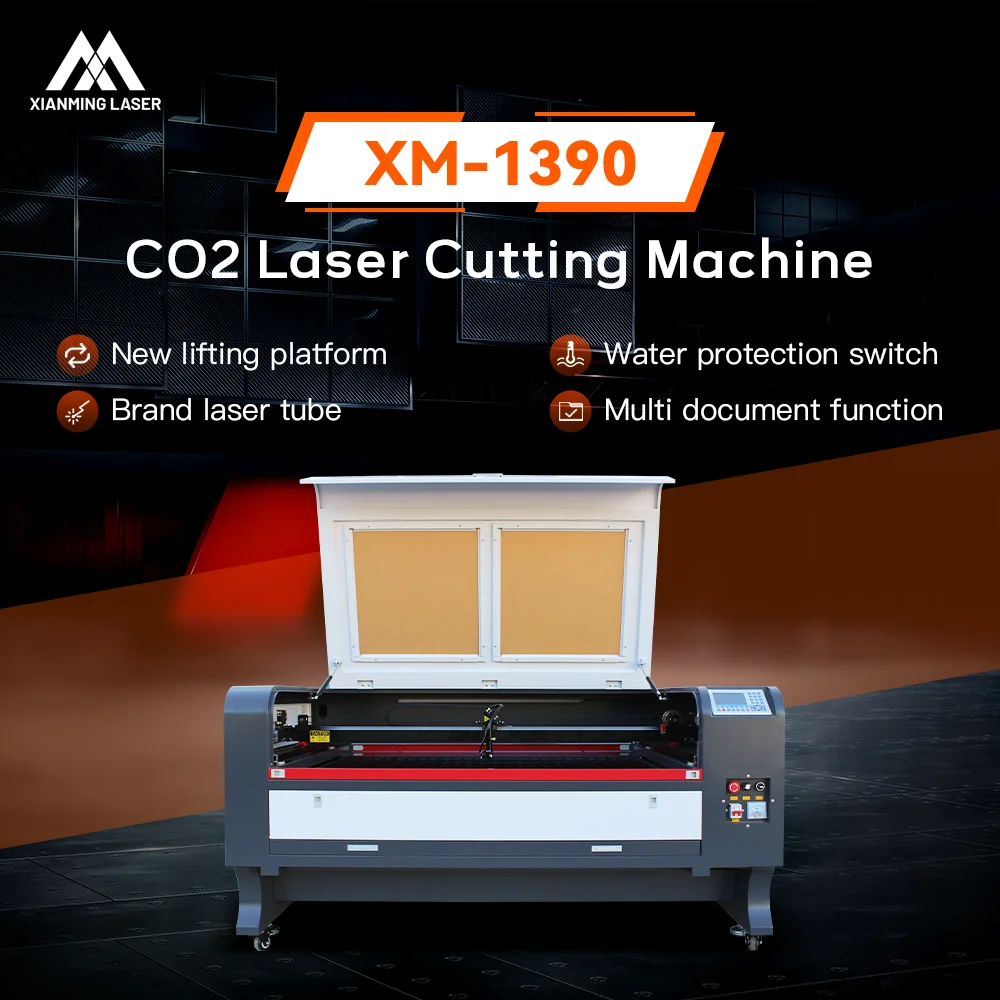

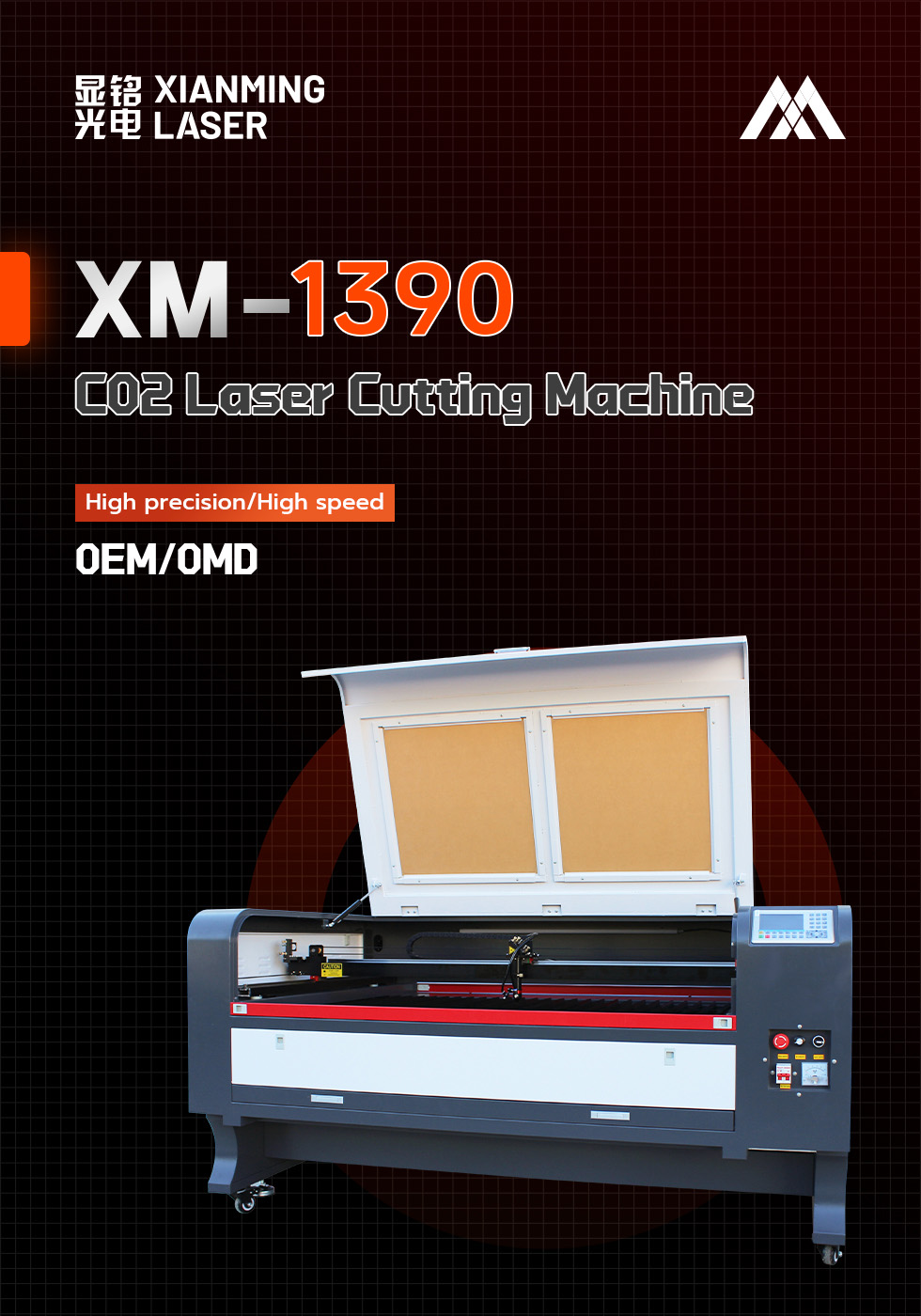

High Speed CNC Automatic Leather Acrylic 1390 CO2 Laser Cutting Machine Price

  • Contact Us
Inquiry

Is there a problem? Please contact us to serve you!

Inquiry

Introducing the Liaocheng Xianming High Speed CNC Automatic Leather Acrylic 1390 CO2 Laser Cutting Machine! This cutting-edge machine is a game-changer for businesses looking to take their cutting operations to the next level. With its high-speed capabilities and precision cutting technology, this machine is designed to handle a wide range of materials with ease

The Liaocheng Xianming High Speed CNC Automatic Leather Acrylic 1390 CO2 Laser Cutting Machine is ideal for cutting leather, acrylic, and other materials with precision and efficiency. Whether you are a small business or a large manufacturing facility, this machine is perfect for a variety of applications. From intricate designs to large-scale projects, this machine can handle it all

One of the standout features of this machine is its high-speed capabilities. With a powerful CO2 laser, this machine is able to cut through materials quickly and with precision. This means that you can complete projects faster and more efficiently, saving you time and money in the long run

In addition to its high-speed capabilities, this machine also offers automatic features that make operation a breeze. The CNC technology allows you to program the machine to cut your designs with precision, ensuring consistent results every time. This is especially useful for businesses looking to streamline their production process and reduce the risk of human error

The Liaocheng Xianming High Speed CNC Automatic Leather Acrylic 1390 CO2 Laser Cutting Machine is also incredibly versatile. With its ability to handle a wide range of materials, this machine is perfect for businesses that work with a variety of materials. Whether you are cutting leather for fashion accessories or acrylic for signage, this machine can handle it all with ease

The Liaocheng Xianming High Speed CNC Automatic Leather Acrylic 1390 CO2 Laser Cutting Machine is a top-of-the-line machine that offers high-speed capabilities, precision cutting technology, and automatic features. This machine is perfect for businesses looking to take their cutting operations to the next level. With its versatility and efficiency, this machine is a must-have for any business looking to improve their cutting process. Get your hands on one today and experience the difference for yourself


DETAIL DISPLAY

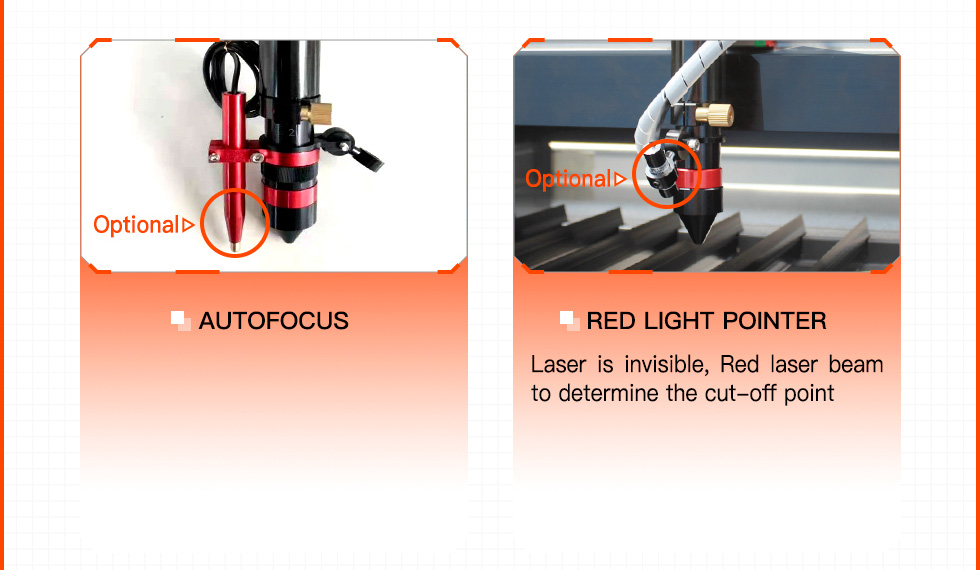

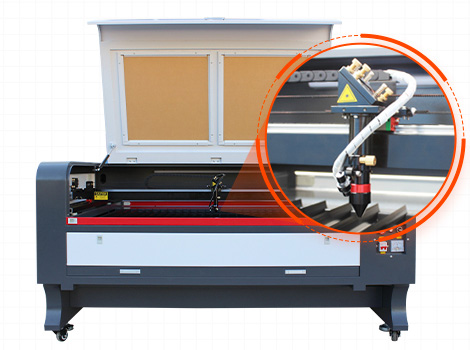

INDUSTRIAL LASER HEAD

High precision retractable laser head, easy to adjust focal length, equipped with red light positioning system, accurate positioning,  reduce material loss. Auto-blowing to protect laser head and prevent the laser burning

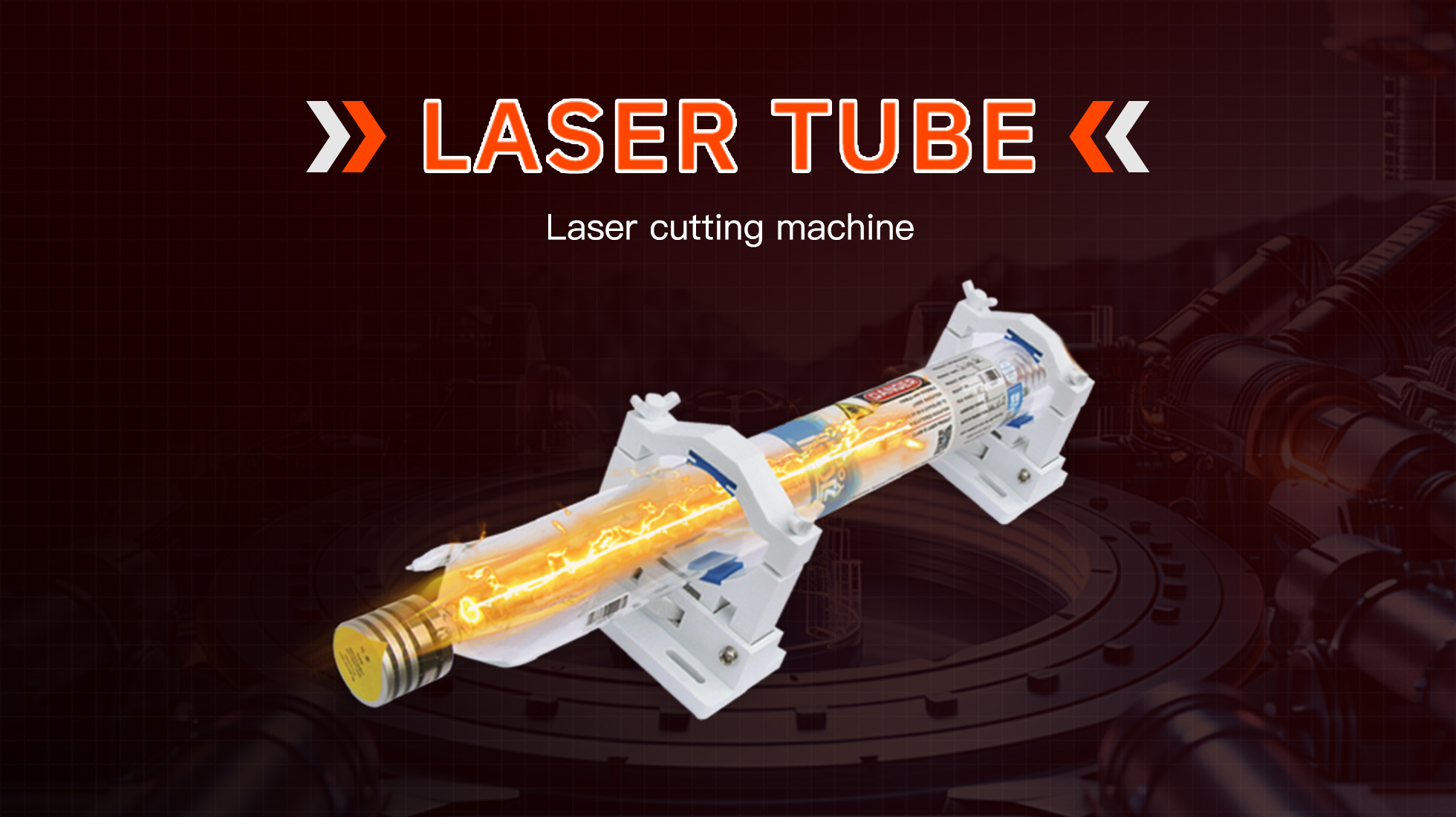

LASER TUBE
Closed Co2 laser tube, long life, stable power. Installation of reinforcement settings, the laser tube is not easy to collide and cause damage when moving the machine
EFR, RECI, CDWJ, YONGLI, JOY

STEPPER MOTOR

High operating accuracy, high temperature resistance can bear the high temperature generated by high-speed operation, and low noise

MOTOR-DRIVER

1. self adaptive circuit
2. necessary accessories of offline working

USA II-VI LENS

Imported USA II-VI Lens, suitable for various environments, and has high precision and high speed

BRAND BELT

The ONK brand belt, wear resistance, good stability, compact structure and low noise

BRAND SWITCH

Engineering design easy to operate

LEADING CHAIN

The current lead and breather pipe are included in it. Thicker, more stable Keep the laser head from shaking

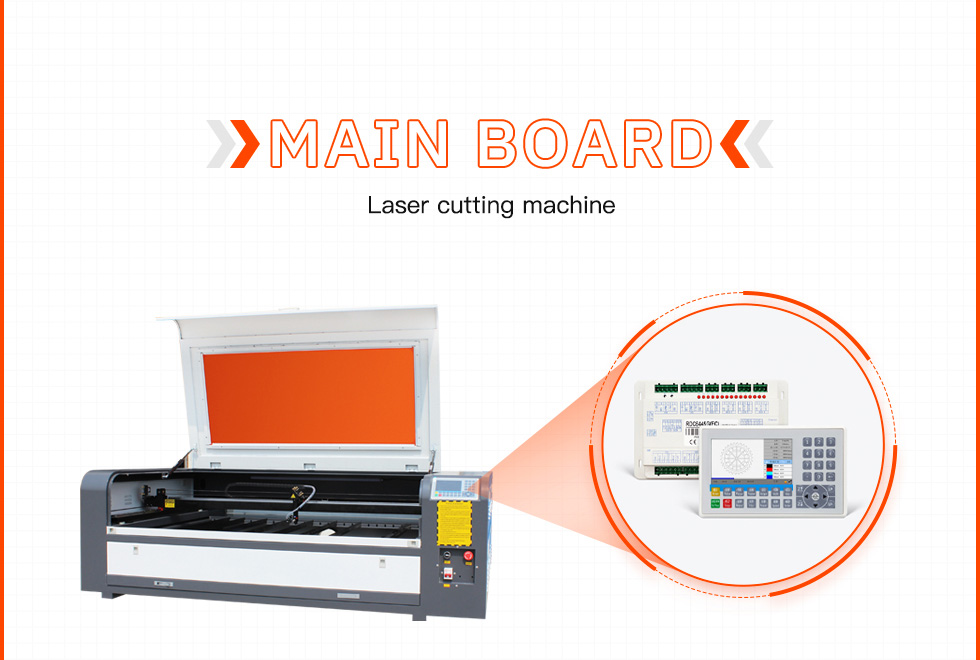

1 Adopt advanced laser engraving and cutting control system: Ruida RDC6445 control system, the control pannel support different language include Chinese, English, French, Pyccko, Portuguese. Turkish, German, Spanish, Vietnamese, Korean, Italian
2 Standard RDWorksV8 software: It support 15 different languages, include: Chinese, English, Japanese, French, German, Portuguese, Polish, Spanish, Russian, Korean, Vietnamese, Turkrish, Arabic. It can compatible with many other software, like Coreldraw, Photoshop, AutoCAD, TAJIMA, etc. You can use these software to make designs, then import to Rdworks to cut or engrave
3. RDworks software support files in different format: AI, DXF, PLT, DST, BMP, DSB, EPS, DAT, NC, RDB, GIF, JPG, JPEG, JPE, JFIF, PNG, MNGICO, CUR, TIF, TIFFTGA, PCX, WBMP, WMF, EMF, JBG, J2C, JPC. PGX, RAS, PNM, PGM, PPM, SKA, RAW
4 Storage: The main board has EMS Memory which enables the user to store more than 100 files
5. Laser output control: Can regulate the laser power from 1-100% according to different material
6. Interface: USB2.0 interface support connect to computer by USB cable, it also support offline work
PARAMETER
Model
XM-1390

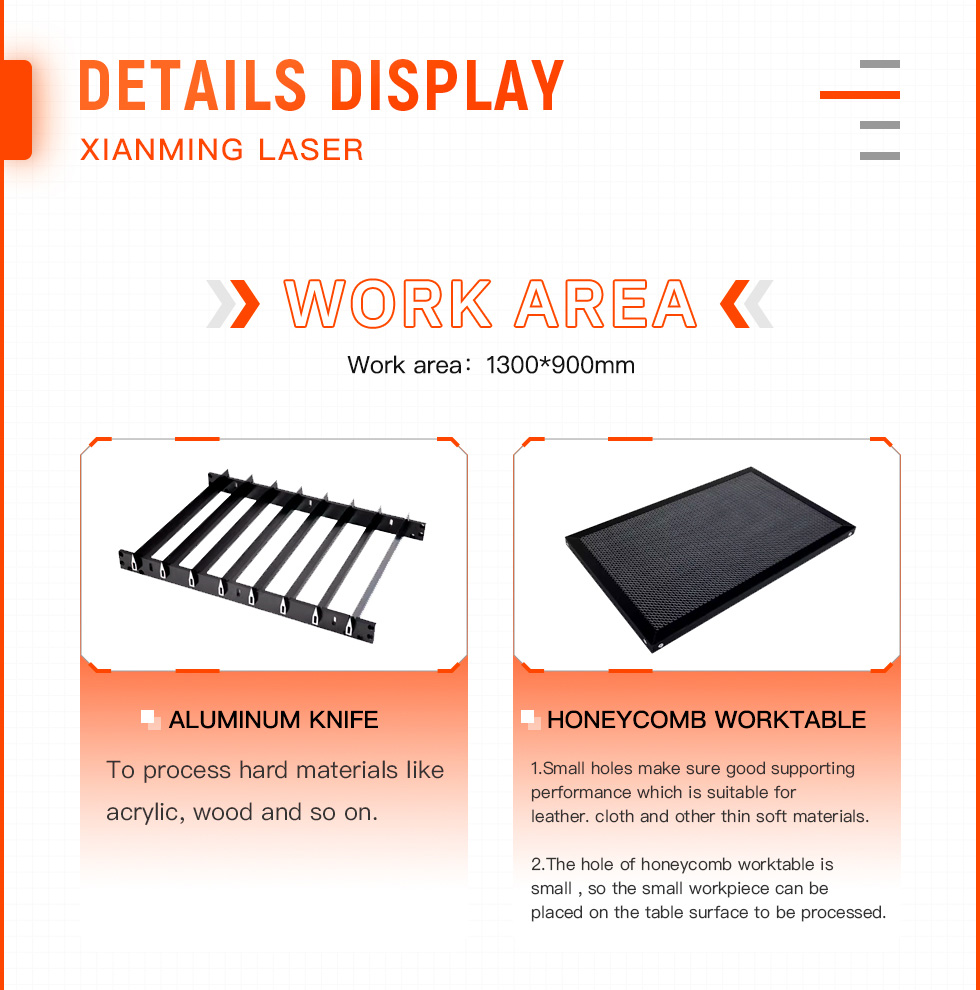

Worktable
Honeycomb or aluminum knife
Engraving area
1300*900mm
Laser Power
60W/80W/100W/130W/150W/180W/300W
Laser Tube
Sealed CO2 glass laser tube
Engraving Depth
5mm
Cutting Speed
0-5000mm / min
Cutting Depth Acrylic
0-30mm acrylic
Up and down worktable
Up and down 200mm adjustable
Minimum Shaping Character
1*1mm
Resolution Ratio
0.0254mm 1000dpi
Power Supply
220W (or 110v) + / -10% 50HZ
Resetting Positioning
Accuracy Less than or equal to 0.01mm
Water protection sensor and alarm
Yes
Operationg Temperature
0-45℃
Operating Humidity
35-70℃
Graphic Format Supported
PLT/DXF/BMP/JPG/GIF/PGN/TIF
Operation System
Windows XP/VISTA/Windows 7/8/10
Software
RDworks / LaserCAD /Aotu CAD
Control Confiquration
DSP
Water Cooling Yes/No
Yes
Engraving Speed
0-60000mm / min

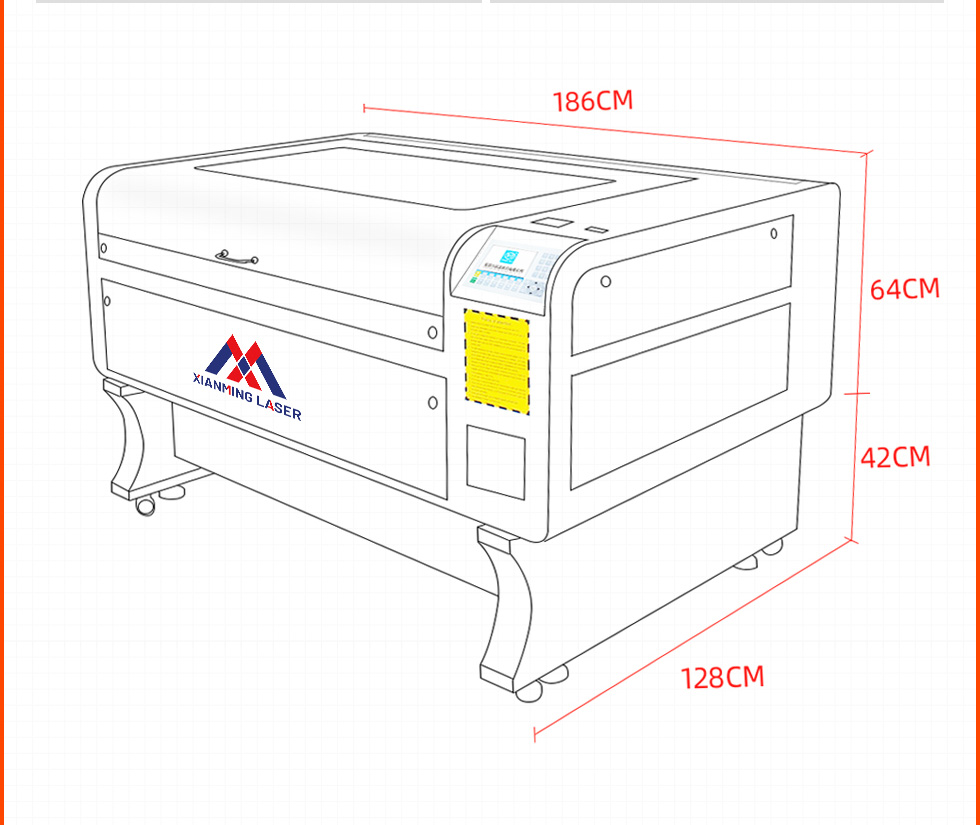

Machine Dimension
1860*1280*1040mm

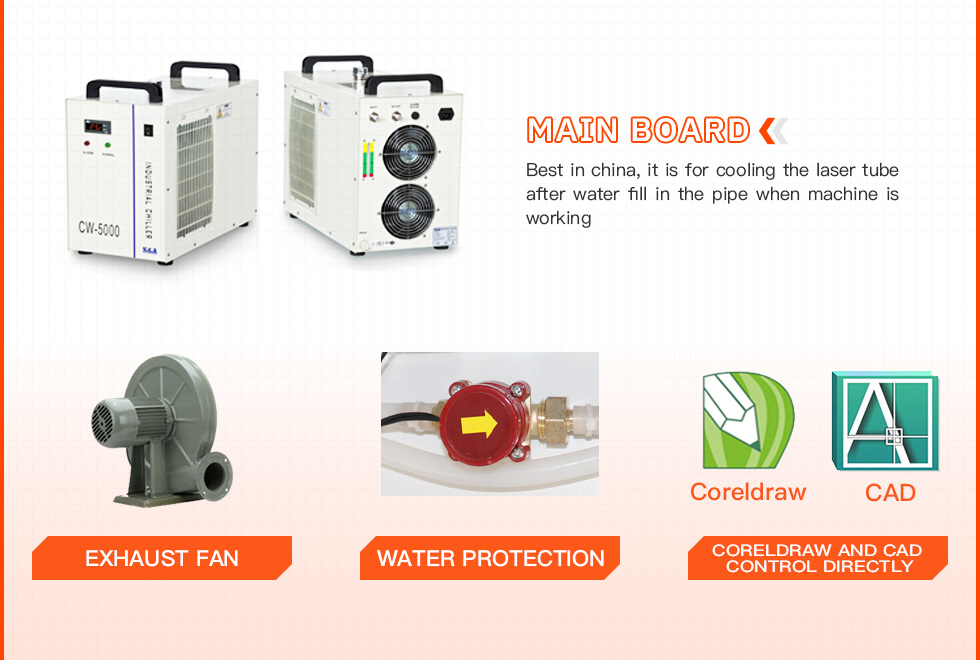

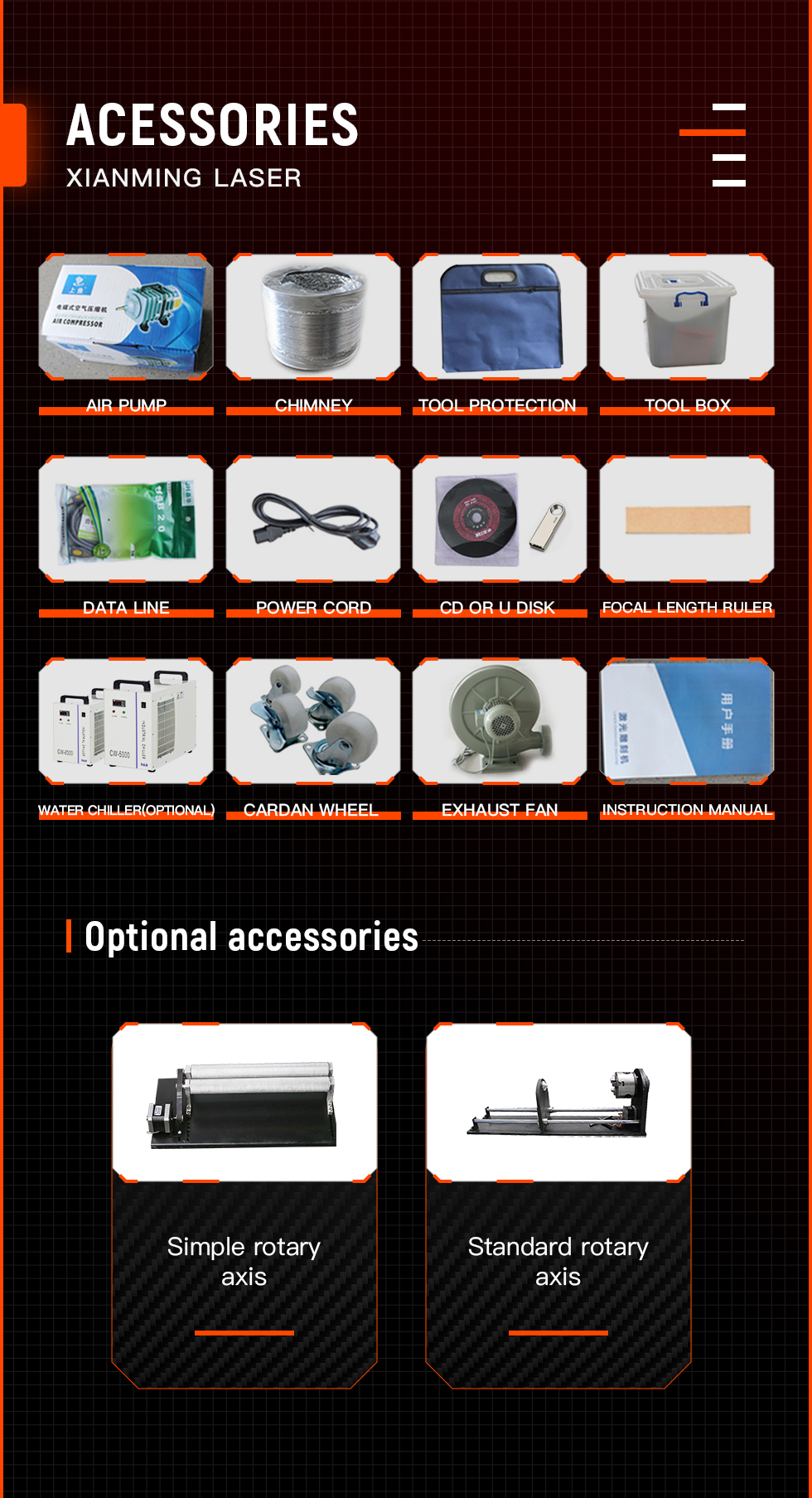

ACCESSORIES
APPLICATION
XIANMING laser CO2 Laser Engraving Machine with different working area laser power or working table, which application is engraving and cutting on acrylic, wood, fabric, cloth, leather, rubber plate, PVC, paper and other kinds of non metal materials
1390 laser cutting machine are widely used in clothing, shoes, luggage, computer embroidery clipping, model, electronic appliances, toys, furniture, advertising decoration, packaging and printing, paper, products, handicrafts, Household appliances, laser processing and other industries
Applicable material for reference
Material
Engrave
Cut
Material
Engrave
Cut





Natural wood

Paper







Acrylic


Mylar







Glass

×
Press board







Double color plate


Rubber







Bamboo


Plywood







MDF


Fiberglass







Cloth


Painted metal







Leather


Plastic







Marble

×
Ceramic

×





Matte boards


Coated Metal

×





Stone

×
Other materials
Inquire us, we will test for you





Cutting thickness of different laser power for reference
Laser power W
Acrylic mm
Plywood mm
MDF mm



40W
3
2
1.5



60W
8
5
3



80W
12
8
6



100W
15
12
9



150W
25
20
15



Our Certificate

COMPANY INTRODUCTION

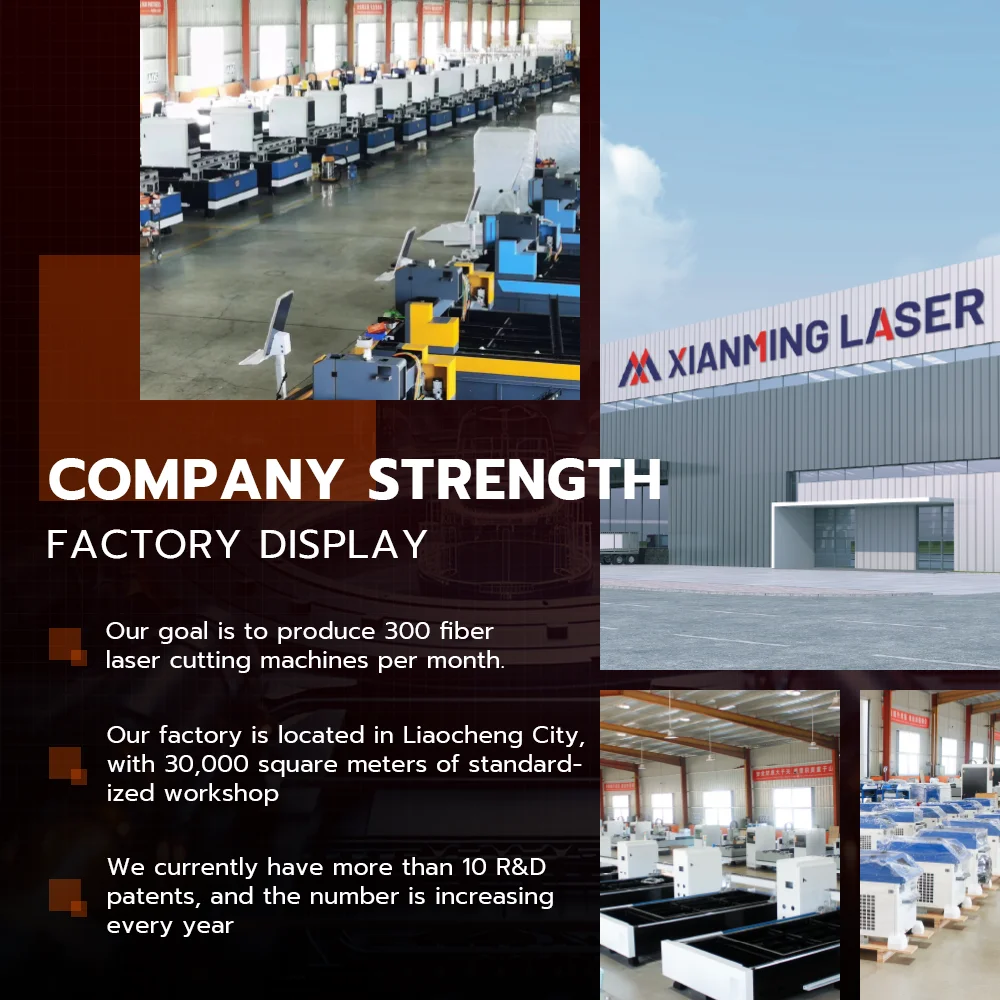

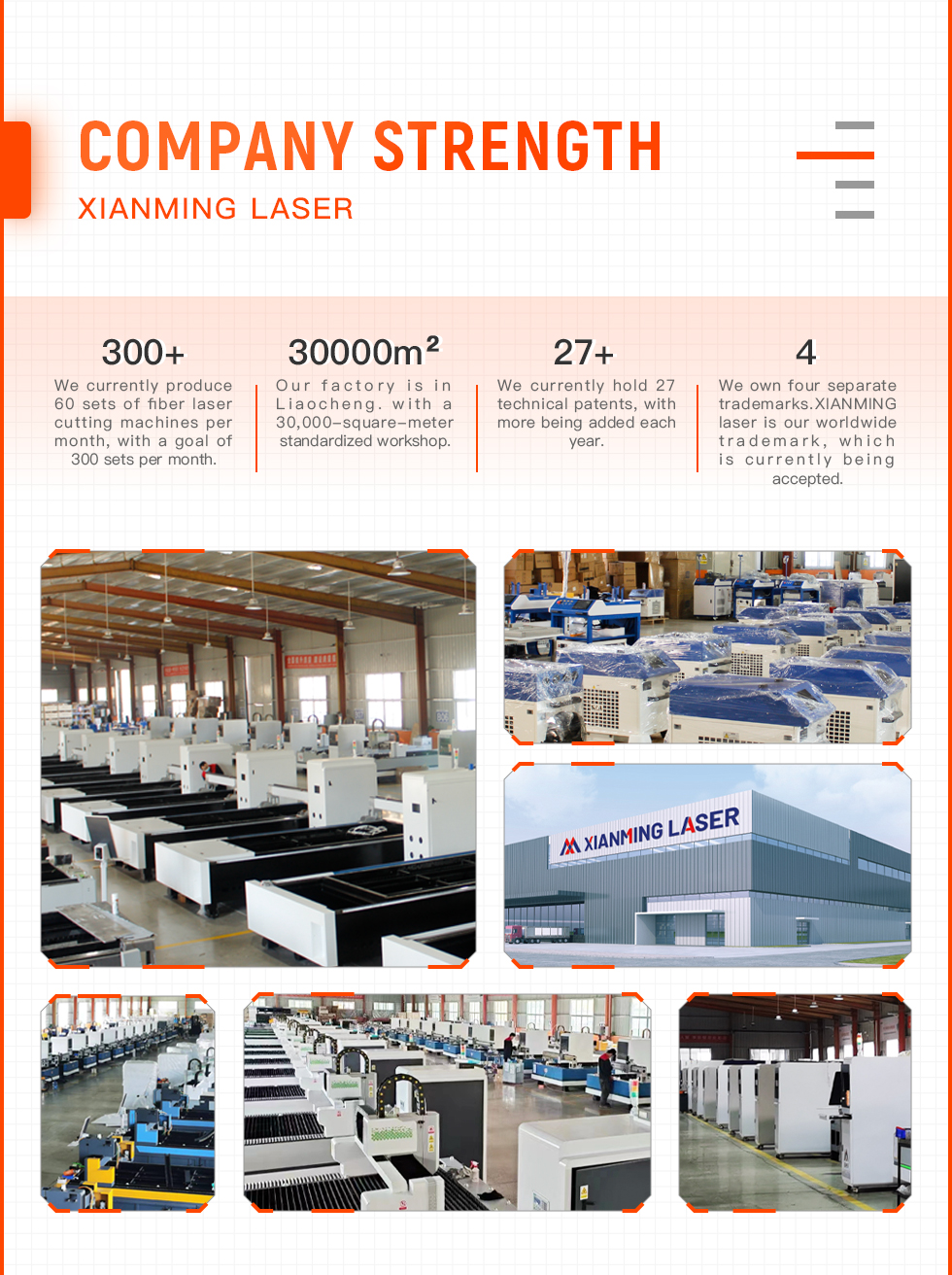

COMPANY AND FACTORY
