China XM CNC Laser Cutter 1060 Laser Engraving Machine 50w 100W Co2 Laser Cutting Machine for Nonmetal

Introducing the China XM CNC Laser Cutter 1060 Laser Engraving Machine, a top-of-the-line 50w or 100W Co2 laser cutting machine designed for nonmetal materials. This high-quality product is manufactured by Liaocheng Xianming, a trusted brand known for its excellence in cutting-edge technology and precision engineering

The China XM CNC Laser Cutter 1060 is perfect for a wide range of applications, including engraving and cutting materials such as wood, acrylic, leather, and more. With its powerful 50w or 100W Co2 laser, this machine delivers fast and accurate results, making it ideal for both professional and hobbyist use

This laser engraving machine is equipped with advanced features to ensure optimal performance and user-friendly operation. The large working area of 1060mm x 600mm provides ample space for handling a variety of projects, while the high-speed cutting capabilities allow for quick and efficient production

Whether you're a seasoned professional or a DIY enthusiast, the China XM CNC Laser Cutter 1060 is the perfect tool for bringing your creative ideas to life. This versatile machine can handle a wide range of materials with ease, giving you the freedom to explore different design possibilities and create unique and personalized projects

The Co2 laser technology used in this cutting machine ensures clean and precise cuts, while the high-quality components guarantee long-lasting durability and reliability. The intuitive software interface allows for easy customization and control, making it simple to adjust settings and achieve the desired results

In addition to its impressive performance capabilities, the China XM CNC Laser Cutter 1060 is also designed with user safety in mind. The enclosed design protects users from direct exposure to the laser beam, while the emergency stop button provides added peace of mind during operation

The China XM CNC Laser Cutter 1060 is a top-of-the-line laser engraving machine that offers exceptional quality, performance, and reliability. Whether you're a professional designer, crafter, or hobbyist, this machine is the perfect tool for bringing your creative visions to life. Invest in the best with Liaocheng Xianming and experience the difference that quality craftsmanship can make in your projects

Products Description

1) Adiustable Speed and Power, Smooth and Precise Engraving and Cutting

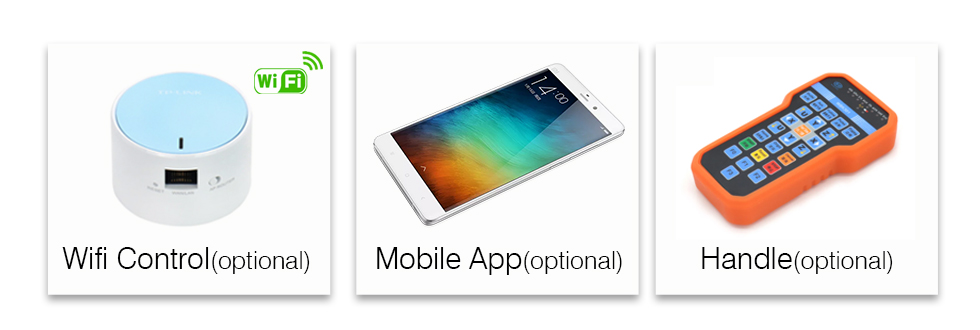

2) USB Interface, U-flash Disk Supported, Ethernet cable WIFI

3) Air Assist, Remove heat and combustible gases from the cutting surface 4) Embedded Exhaust Fan Easier install Safer transport

5) Rotary Axis, Engrave any cylindrical object 6) Aluminum Knife Worktable or Honeycomb Worktable

7) Intuitive Control Panel Set Speed, power and more controls directly from the laser 8) Water Cooling and Protection System 9) Red light positioning 10) Emergency Stop Button 11) Larger Size, 1000'600mm working area 12) The lifting platform is electric control 13) Drag-and-chain transmission line 14) Laser focal length: 5CM

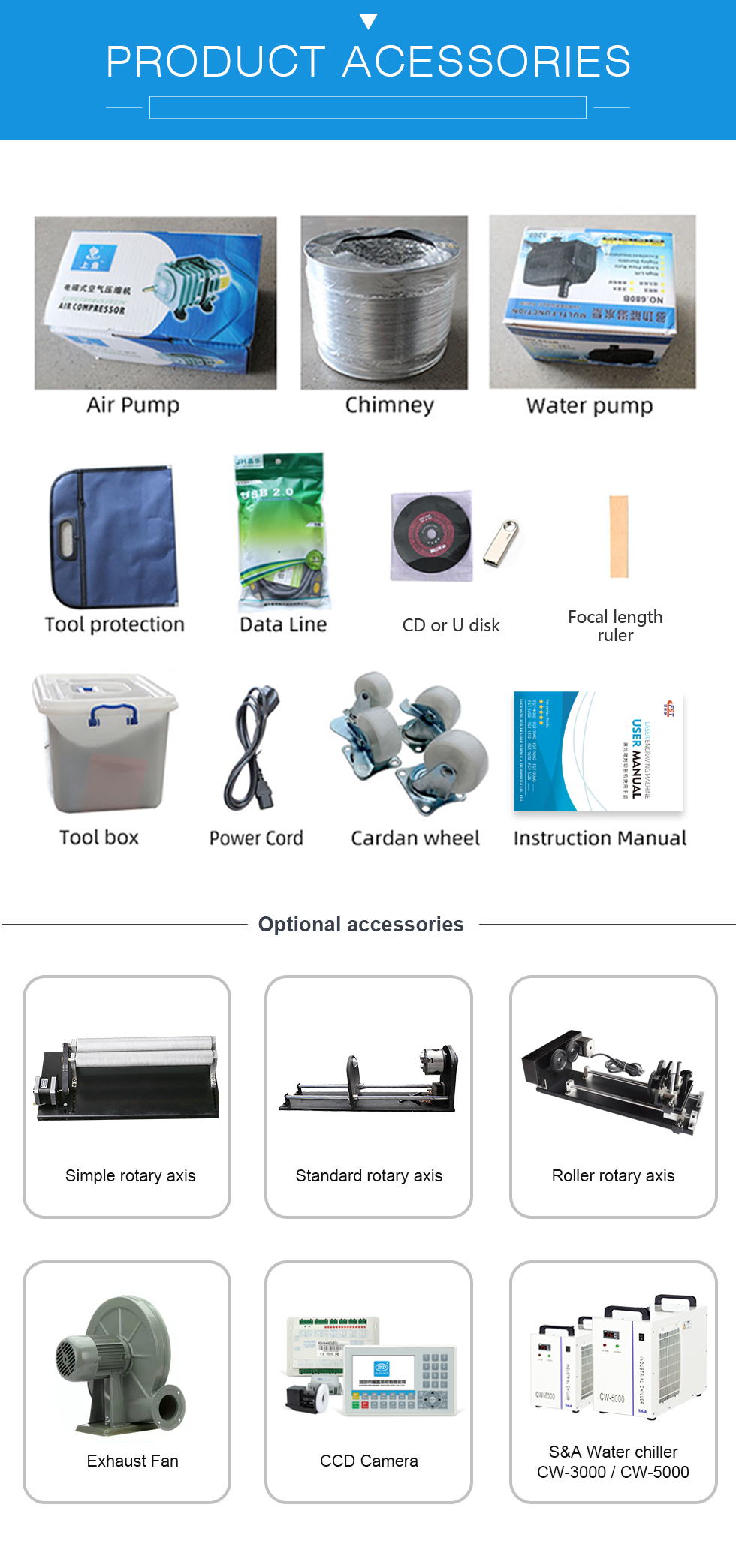

Product Acessories

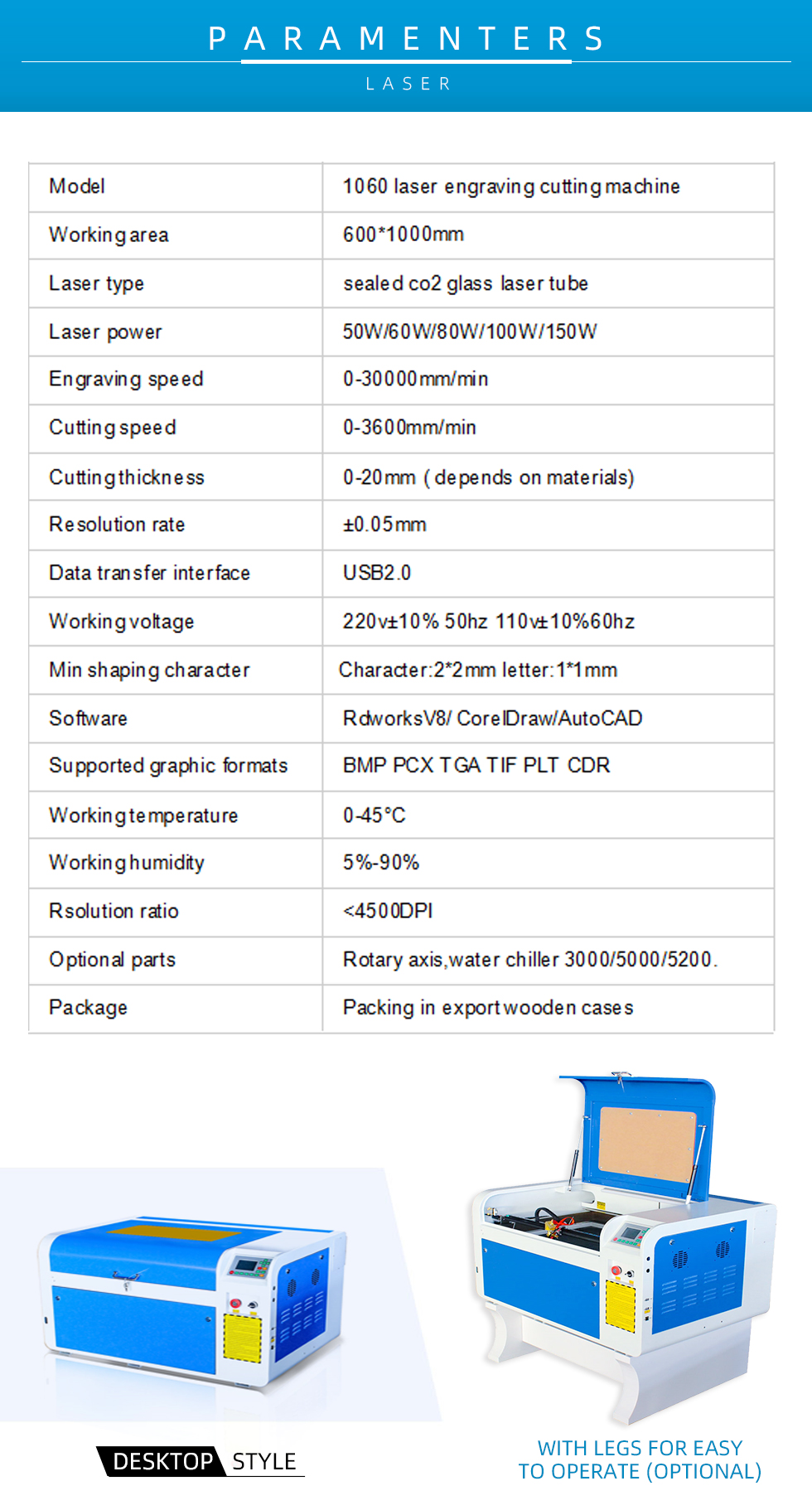

Product Paramenters

Model	1060 laser engraving cutting machine
Working area	600*1000mm
Laser type	Sealed co2 glass laser tube
Laser power	50W/60W/80W/100W/150W
Engraving speed	0-30000mm/min
Cuttingspeed	0-3600mm/min
Cuttingthickness	0-20mm depends on material
Resolution rate	+0.05mm
Data transfer interface	USB2.0
Working voltage	220v+10% 50hz 110生10%60hz
Min shaping character	Character:2*2mm letter:1*1mm
Software	Rdworksv8' CorelDraw/AutoCAD
Supported graphic formats	BMP PCX TGA TIF PLT CDR
Working temperature	0-45°C
Working humidity	5%-90%
Rsolution ratio	<4500dpi<>
Optional parts	Rotary axis, water chiller 3000/5000/5200
Package	Packing in exportwooden cases

Applicable materials:Acrylic, leather, wood, rubber, double-color board, MDF plwwoodbamboo, paper, cardboard, marble, granite, stone, glass, fabric, textile, coated metal, painted metal, anodised aluminum etc

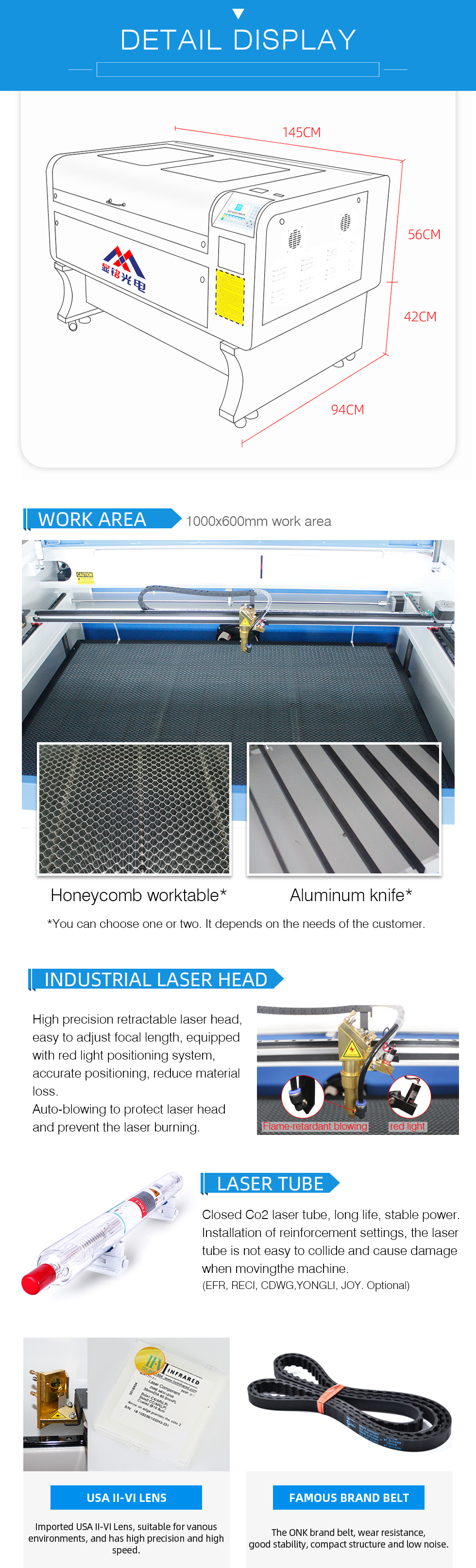

Details Images

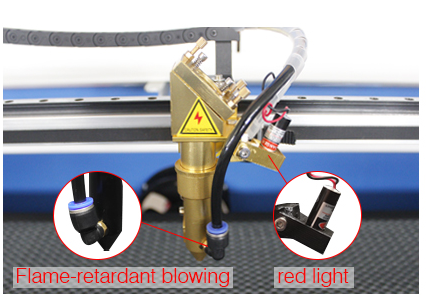

INDUSTRIAL LASER HEAD

High precision retractable laser head easy to adjust focal length, equipped with red light positioning system, accurate positioning, reduce materialloss

Auto-blowing to protect laser head and prevent the laser burning

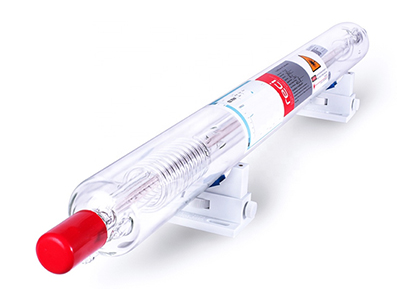

LASER TUBE

Closed Co2 laser tube, long life, stable powerInstallation of reinforcement settings, the lasertube is not easy to collide and cause damage when movingthe machine. EFR, RECI, CDWG, YONGLI, JOY

USA II-VI LENS

Imported USA II-VI Lens, suitable for vanous environments and has high precision and high speed

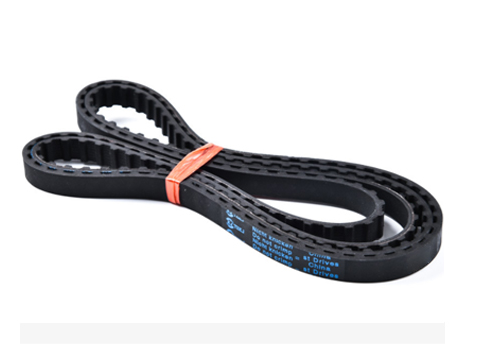

FAMOUS BRAND BELT

The ONK brand belt, wear resistance, good stability, compact structure and low noise

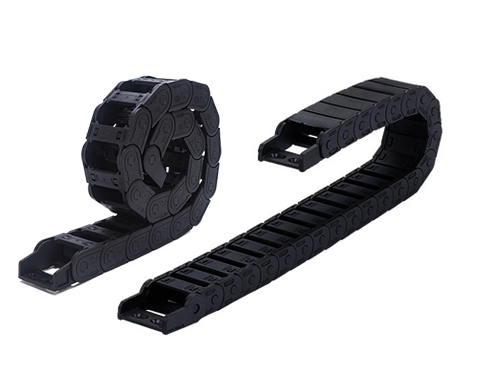

LEADING CHAIN

The current lead and breather pipe are included in it, Thicker more stable Keep the laser head from shaking

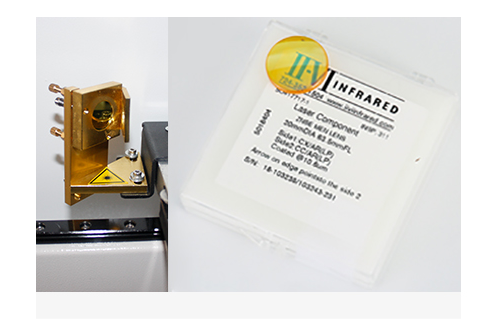

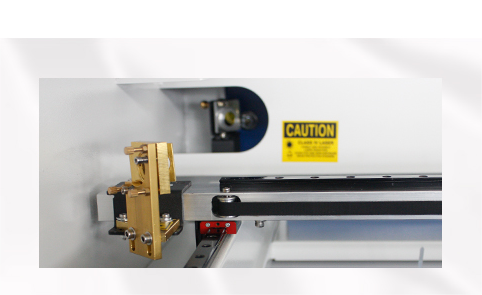

REFLECTOR

45°mirror adjustment set Easy to adjust laser path

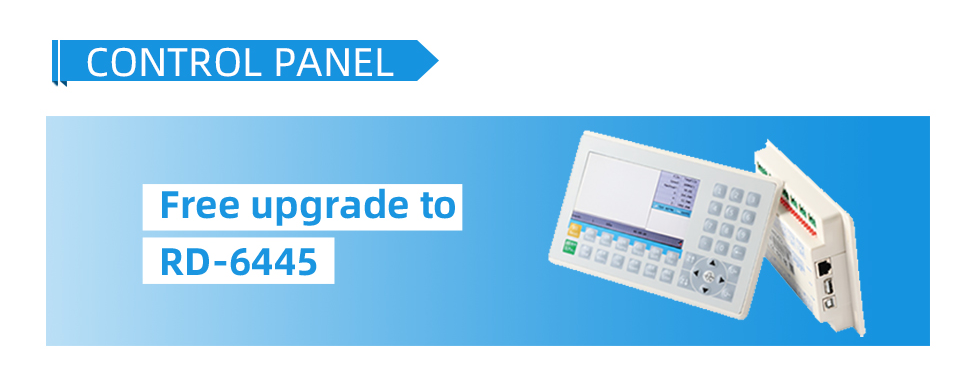

1. Adopt advanced laser engraving and cutting control system: Ruida RDC6442 control system, the control pannal support different language include ChineseEnglish, French, Pyccko, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian

2. Standard RDWorksV8 software: it support 15 different languages, include:Chinese Enalish, Japanese, Erench, German, Portuauese, Polish, Spanish, Russian, Korean, Vietnamese, Indonesian, Italian, Turkrish, Arabic can compatible with many other software, like Coreldraw, Photoshop AutoCAD, TAlIMA, etc. You can use these software to make designs, then import to Rdworks tccut or engrave

3. RDworks software support files in different format: Al, DXF, PLTDST, BMPDSB, EPS, DAT, NC, RDBGIF, PG, IPEG, PE, JFIF, PNG, MNG, ICO, CUR, TIF, TIFF, TGAPCX, WBMP, WMF, EMF, JBG, 2C, JPCPGXRAS, PNM, PGM, PPMSKA, RAW

4. Storage: The main board has EMS Memory which enables the user to storemore than 100 files

5. Laser output control: Can regulate the laser power from 1-100% accordingto different material

6. Interface: USB2.0 interface support connect to computer by USB cable, italso support offline work

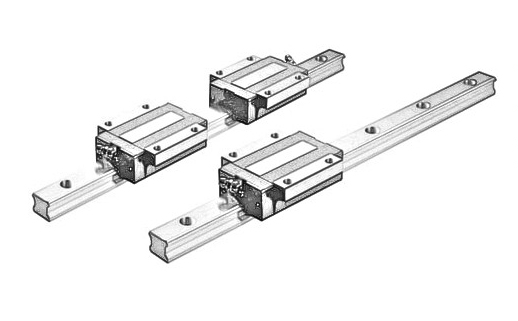

LINEAR GUIDE

XY axis apply imported square railsEnsures stable operation, highprecision and long life

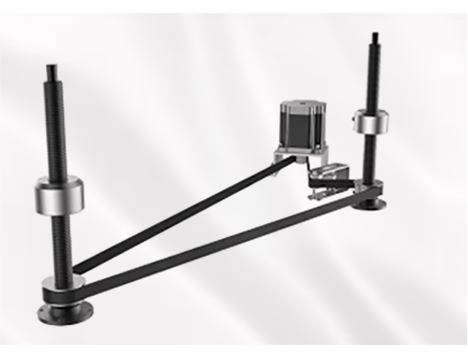

PLATFORM LIFTING

lt allows you to process materials ofvarious sizes can be lifted in Z direction (up-and-down) to get more workingspace

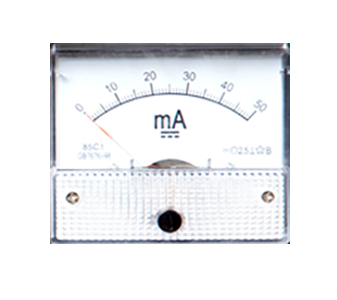

AMPEREMETER

The ammeter can detect whether the lasertube current is normal

THERMOMETER

Real-time display of the temperature of the lasertube, prolonging the service life of the laser tube

SUPPORTED SOFTWARE

Corel DRAW, AutoCAD, Light Burn supported

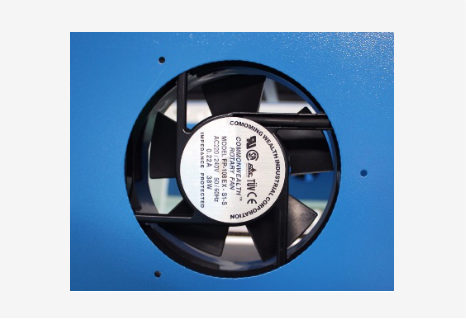

BUILT- IN EXHAUST FAN

Built-in Exhaust Fan, Easier install Safer transport

Certificate

Product packaging

Applicable Industries

Arts and crafts, advertising, decoration, wood working,eather manuf.acturing, packaging, printing, mould making, furniture, clothing anabrand making etc.

Applicable material for reference
Material	Engrave	Cut	Material	Engrave	Cut
Naturalwood	√	√	Paper	√	√
Acrylic	√	√	Mylar	√	√
Glass	√	x	Press board	√	√
Double color plate	√	√	Rubber	√	√
Bamboo	√	√	Plywood	√	√
MDF	√	√	Fiberglass	√	√
Cloth	√	√	Painted metal	√	√
Leather	√	√	Plastic	√	√
Marble	√	x	Ceramic	√	x
Matte boards	√	√	Coated Metal	√	x
Stone	√	x	Other materials	Inquire us, we will test for you

Cutting thickness of different laser power for reference
Laser power W	Acrylic mm	Plywood mm	MDFmm
40W	3	2	1.5
60w	8	5	3
80w	12	8	6
100W	15	12	9
150W	25	20	15
