90W 100W 130W 9060 1080 1390 CO2 Laser Cutting Machines for Laser Engraver System

  • Contact Us
Inquiry

Is there a problem? Please contact us to serve you!

Inquiry

Introducing the Liaocheng Xianming CO2 Laser Cutting Machines, the perfect addition to any laser engraving system. Available in three power options - 90W, 100W, and 130W - these cutting machines are designed to meet all your engraving needs with precision and efficiency

The Liaocheng Xianming CO2 Laser Cutting Machines feature a durable construction and high-quality components that ensure long-lasting performance. The 9060 model offers a compact design with a cutting area of 900mm x 600mm, perfect for smaller projects. The 1080 model provides a larger cutting area of 1000mm x 800mm, while the 1390 model offers the largest cutting area of 1300mm x 900mm for bigger projects

Equipped with advanced laser technology, these cutting machines deliver fast and precise cutting results on a wide range of materials, including acrylic, wood, leather, and more. Whether you're working on intricate designs or cutting through thick materials, the Liaocheng Xianming CO2 Laser Cutting Machines can handle it all with ease

Effortlessly control the cutting process with the user-friendly interface and software, allowing you to customize settings and adjust cutting parameters for optimal results. The high-powered laser beam ensures clean cuts with smooth edges, giving your projects a professional finish every time

Designed for versatility, the Liaocheng Xianming CO2 Laser Cutting Machines are suitable for a variety of industries, including advertising, woodworking, and textile. Whether you're a hobbyist or a professional, these cutting machines are the perfect solution for all your engraving and cutting needs

Invest in the Liaocheng Xianming CO2 Laser Cutting Machines today and take your engraving projects to the next level. With their superior performance, durability, and precision, you can trust that these cutting machines will exceed your expectations and deliver exceptional results every time. Upgrade your laser engraving system with the Liaocheng Xianming CO2 Laser Cutting Machines and experience the difference in quality and efficiency

PRODUCT DETAILS
PRODUCT     DETAILS

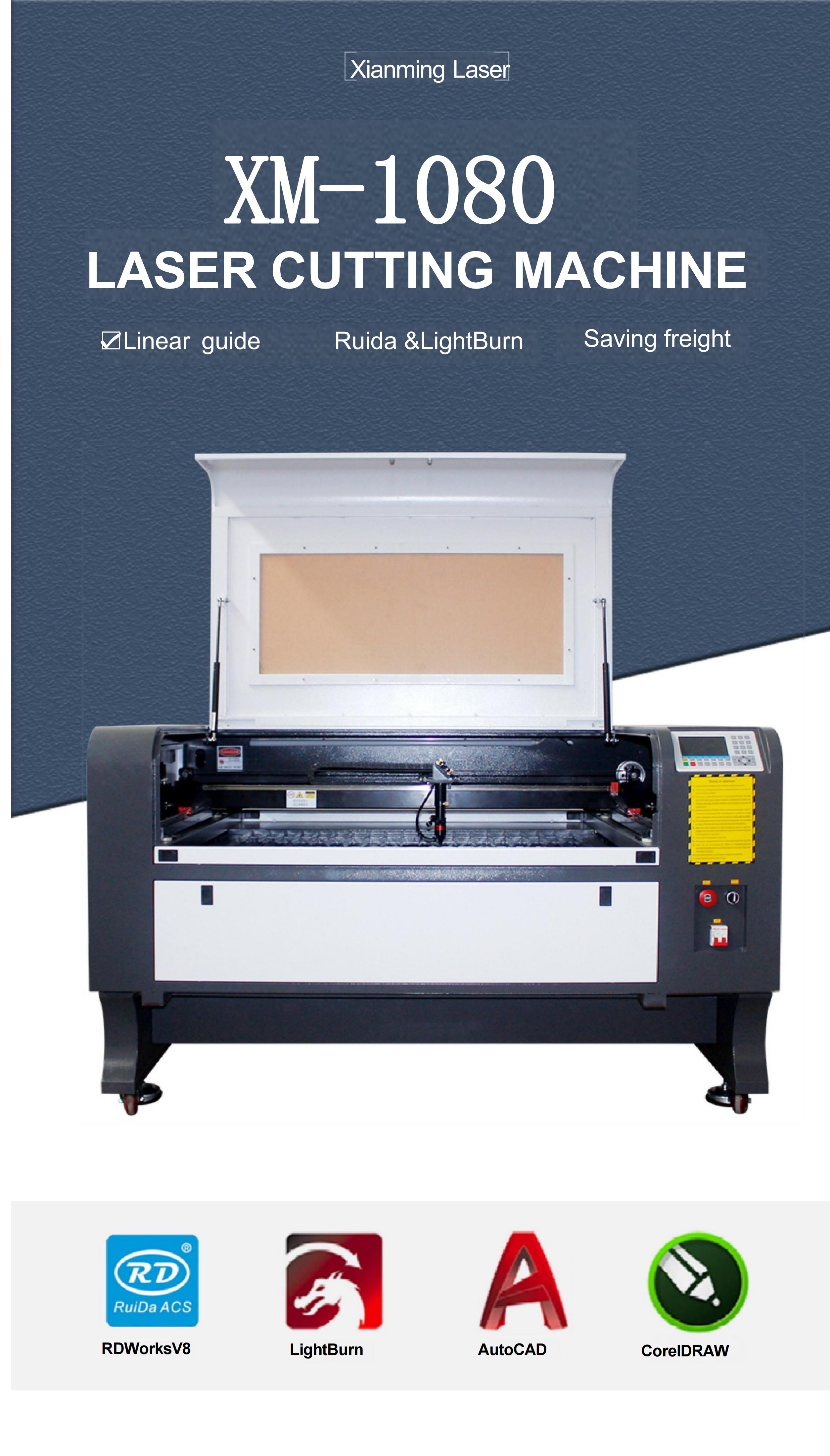

Model
XM-1080
Worktable
Honeycomb /Aluminum knife
Eneraving area
1000*800mm
Laser Power
60W/80W/100W/130W/150W
Engraving Speed
500mm/s Max
Engraving Depth
5mm
Cutting Speed
60mm/s
Cutting Depth Acrylic
0-15mm acrylic
Up and down work table
Ec Up and down 300mm adjustable
Minimum Shaping Character
1X1mm
Resolution Ratio
0.0254mm 1000dpi
Power Supply
220V(or110V)+/-10%50Hz
Resetting Positioning
Accuracy less than or equal to 0.01mm
Water protecting sensor and alam
Yes
0perating Temperature
0-45℃
Operating Humidity
35-70℃
Graphic Format Supported
PLT/DXF/BMP/JPG/GIF/PGN/TIF
Graphic Format Supported
windows xp, win7, win10
Software
RDworksV8
Water Cooling Yes/No
Yes
Xianming laser CO2 Laser Engraving Cutting Machine with different working area, laser power or working table, which application is engraving and cutting on acrylic, wood, fabric, cloth, leather rubber plate, PVC, paper and other kinds of non metal materials.1080 laser cutting machine are widely used in clothing, shoes, luggage, computer embroidery clipping, model, electronic appliances, toys, furniture, advertising decoration, packaging and printing paper products,handicrafts. Household appliances, laser processing and other industries
CO2 LASER POWER:
This laser engraving and cutting machine comes with a CO2 laser tube to cut through various materials and engrave your designs faster, deeper, and clearer
RUIDA LCD DIGITAL CONTROLLER:
The intuitive control panel with a digital display allows complete control of the laser head, pausing and stopping projects, adjusting laser power and speed settings, file viewing, and project framing via Windows-compatible RDWorks v8
USB & ETHERNET PORTS:
2 USB ports allow flash drive connectivity and a USB-to-USB PC connection. Plus. the ethernet connection is compatible with PCs
VIEWING WINDOW:
A transparent acrylic glass viewing window allows observation throughout the laser engraving process
ADJUSTABLE LASER NOZZLE:
The laser nozzle can extend downwards or be fully retracted allowing more control over different focal distance setups
WATER FLOW SENSOR:
A pressure flow sensor monitors water flow throughout the laser engraving process and prevents the laser from firing if water stops circulating through the laser tube
AUTOMATIC SHUTDOWN:
The auto-shutdown safety feature stops the machine when opening the transparent window cover. Once closed, press the“Enter”button to continue operation
LASER TUBE
Closed Co2 laser tube, long life, stable power. lnstallation of re-inforcement settings, the laser tube is not easy to collide and cause damage when moving the machine. (EFR RECI, CDWJ YONGLI, JOY. Optional

BRAND STEPPER MOTOR

High operating accuracy, high temperature resistance, can bear the high temperature generated by high-speed operation, and low noise

MOTOR-DRIVER

1. self adaptive circuit 2. necessary accessories of off -line working

LEADING CHAIN

The current lead and breather pipe are included in it. Thicker, more stable Keep the laser head from shaking

USA II-VI LENS

Imported USA II-VI Lens, suitable for various environments, and has high precision and high speed

FAMOUS BRAND BELT

The brand belt, wear resistance, good stability, compact structure and low noise
1. Adopt advanced laser engraving and cutting control system : Ruida RDC6442 control system, the control pannel support different language include Chinese. English, French, Pyccko, Portuguese, Turkish, German, Spanish, Vietnamese. Korean, Italian. 2. Standard RDWorksV8  software : It support 15 different languages, include:Chinese, English, Japanese, French, German, Portuguese, Polish, Spanish, Russian, Korean, Vietnamese, Indonesian, ltalian, Turkrish, Arabic. lt can compatible with many other software, like Coreldraw, Photoshop. AutoCAD, TAJIMA, etc. You can use these software to make designs, then import to Rdworks to cut or engrave. 3. RDworks software support files in different format:Al, DXF, PLT, DST, BMPDSBEPSDATNCRDBGIFJPGJPEGJPEJFIFPNGMNGICOCURTIFTIFETGAPCXWBMP, WMF, EMFJBG, J2CJPC, PGXRAS, PNM, PGM, PPM, SKARAW 4. Storage:The mainboard has EMS Memory which enables the user to store more than 100 files. 5. Laser output control:Can regulate the laser power from 1-100%accordingto different material. 6. Interface:USB2.0 interface support connect to computer by USB cable, it also support offline work

Product Acessories

Products APPLICATTION
