Commercial terms of products:

This fiber laser cutting machine optimizes its structural design and reduces transportation costs. It can achieve timely processing of various graphics and characters, user-friendly, simple and clear. Support custom formats. The maximum processing area can reach 2500mm *12000mm, and the maximum thickness of the board can be cut to 25mm. It can meet the requirements of large format processing. Support custom formats.

CHARACTERISTICS:

01. OVERSIZED PROCESSING FORMAT: The maximum processing format can reach 2500mm*12000mm, and the maximum thickness of the plate can be cut to 25mm. It can meet the requirements of large-format processing. Customized formats are supported.
02. REDUCE TRANSPORTATION COSTS: Optimize the transportation plan to enable 6 complete machines to be loaded into a 40'HQ regular container, thereby reducing transportation costs.
03. SERVO DUAL-DRIVE GANTRY STRUCTURE: Reduce the height of the gantry structure, use rack and guide rail transmission, adopt centralized lubrication device, and facilitate maintenance.
04. HIGH QUALITY CUTTING: High precision brand anti-collision professional laser cutting headensures the best cutting effect.
05. FIBER LASER: Max/Raycus laser (optional for other brands of lasers) is used, withstable and reliable power and guaranteed performance.
06. UPGRADED MECHANICAL STRUCTURE: Ultra light aluminum crossbeam, produced using 10000 ton extrusion technology to create aluminum crossbeams; Fire resistant, high temperature resistant, and excellent operational stability.

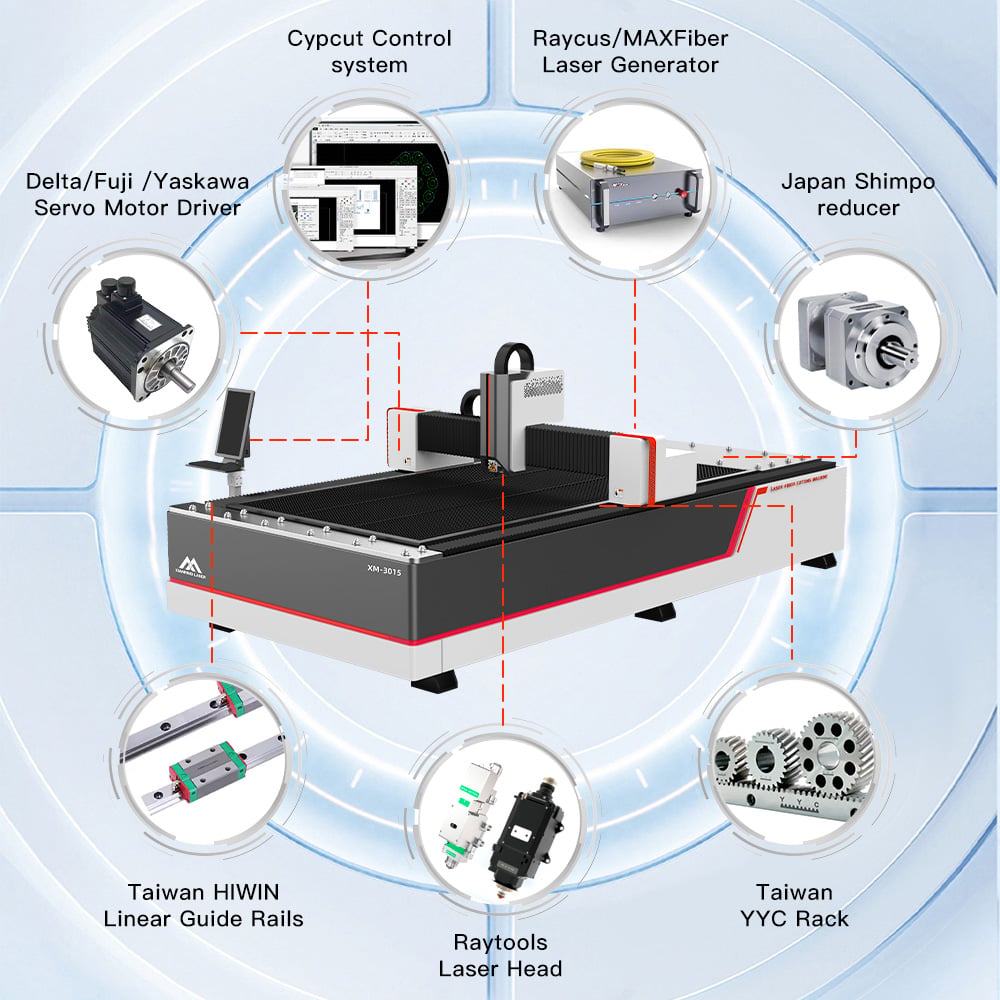

PRODUCT DETAILS:

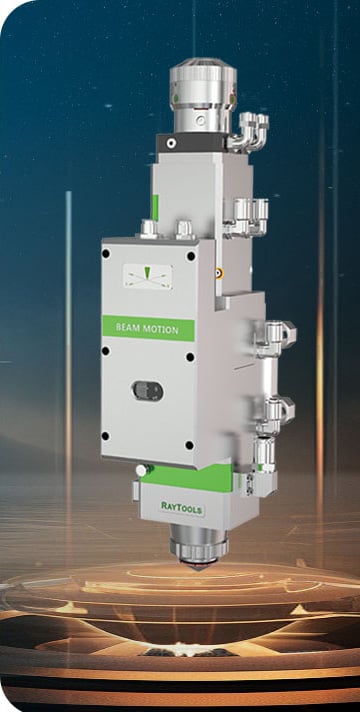

LASER CUTTING HEAD

Multiple Protection

3 protective lenses , highly effective collimating focus lens protection.2-way optical water cooling extends the continuous working time effectively.

High-precision

To successfully avoid step loss,a closed-loop stepping motor is used.The repetition accuracy is 1M and the focusing speed is 100mm/s. Dust-proof to IP65,with a patent-protected mirror cover plate and no dead angle.

Various Brands Of Laser Head Are Available

We can provide all high quality laser heads . It has been tested by us for a long time.

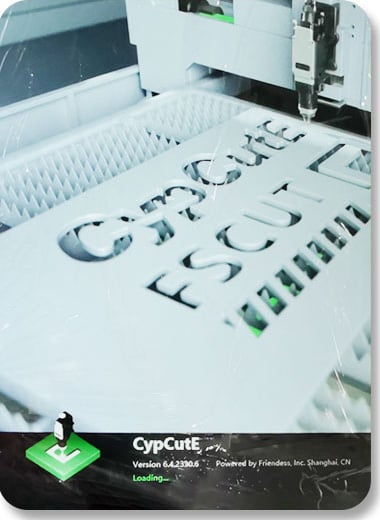

CYPCUT

CypCut sheet cutting software is an in-depth design for fiber laser cutting industry. It simplifies complex CNC machine operation and integrates CAD, Nest and CAM modules in one. From drawing, nesting to workpiece cutting all can be finished by a few clicks.

1. Auto Optimize Imported Drawing

2. Graphical Cutting Technique Setting

3. Flexible Production Mode

4. Statistic of Production

5. Precise Edge Finding

6.Dual-Drive Error Offset

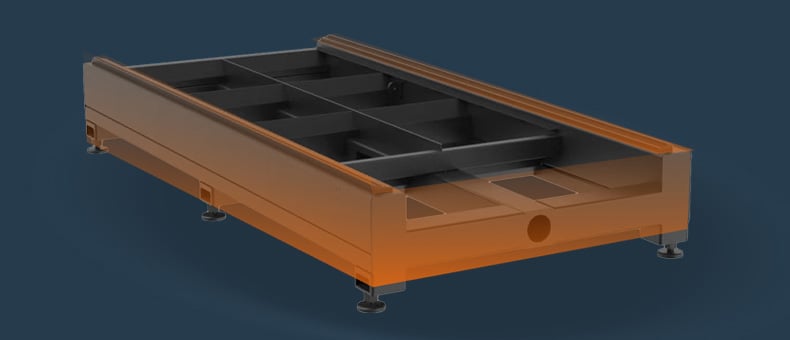

The Segmented RectangularTube Welded Bed

The bed's intemal structure is an aviation metal honeycomb structure welded togethe with a number of rectangular tubes. Stiffeners are placed inside the tubes to strengthen the bed's strength. and tensile strength, as well as the resistance and stability of the quide rail, preventing deformation.

Lifetime Service

It assures that the machine will perform accurately for a long period and will not distort over its lifetime.

Higher Precision

High tensile strength, stability,and strength allowing for 20 years of use without distortion.

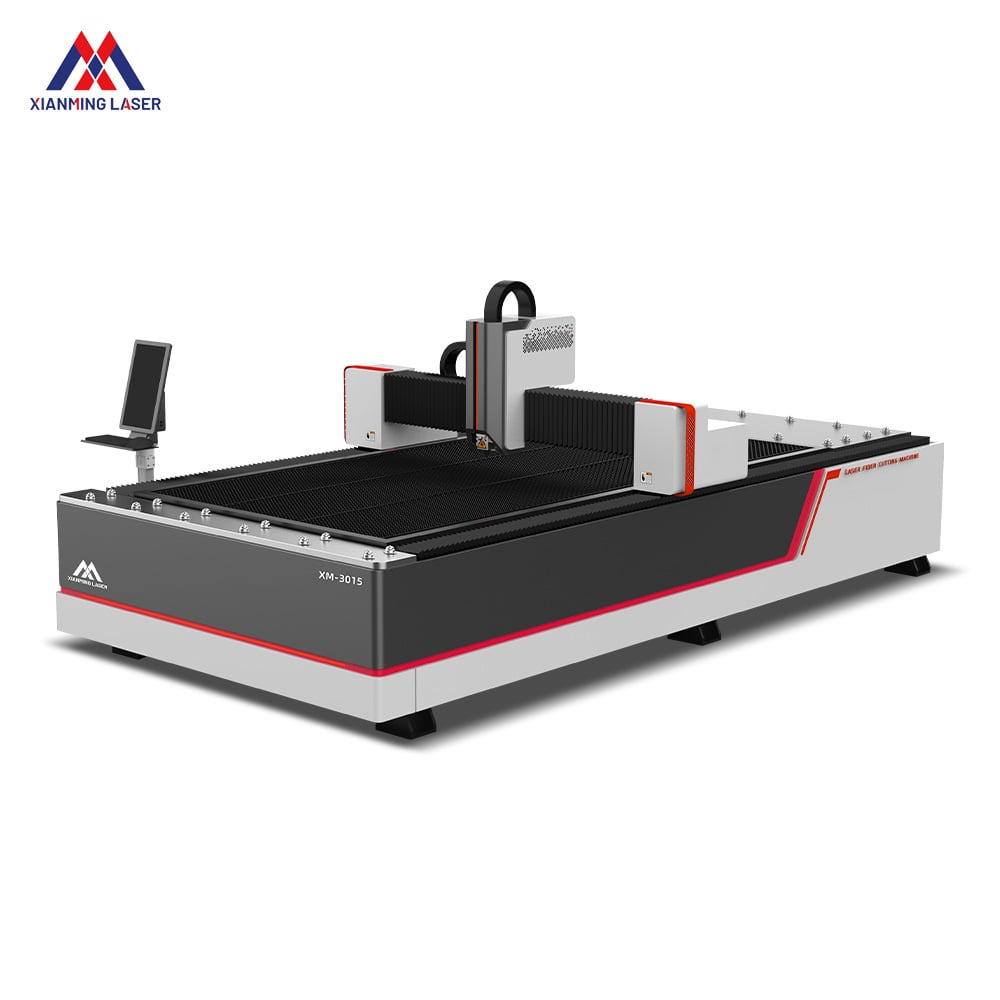

Description:

The newly designed single fiber laser cutting machine is a more cost-effective product with a smaller size. It can be loaded into a 40 foot container as a whole, with 6 units shipped at once without the need for disassembly, saving installation trouble after arrival. With excellent cutting quality, compact footprint, and low operating costs, this cutting machine is receiving increasing attention.

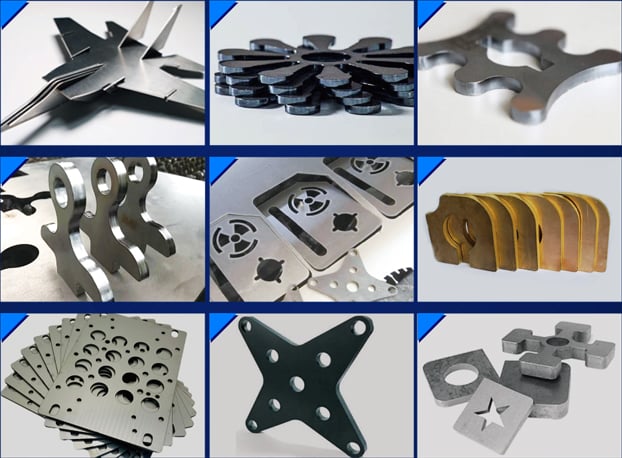

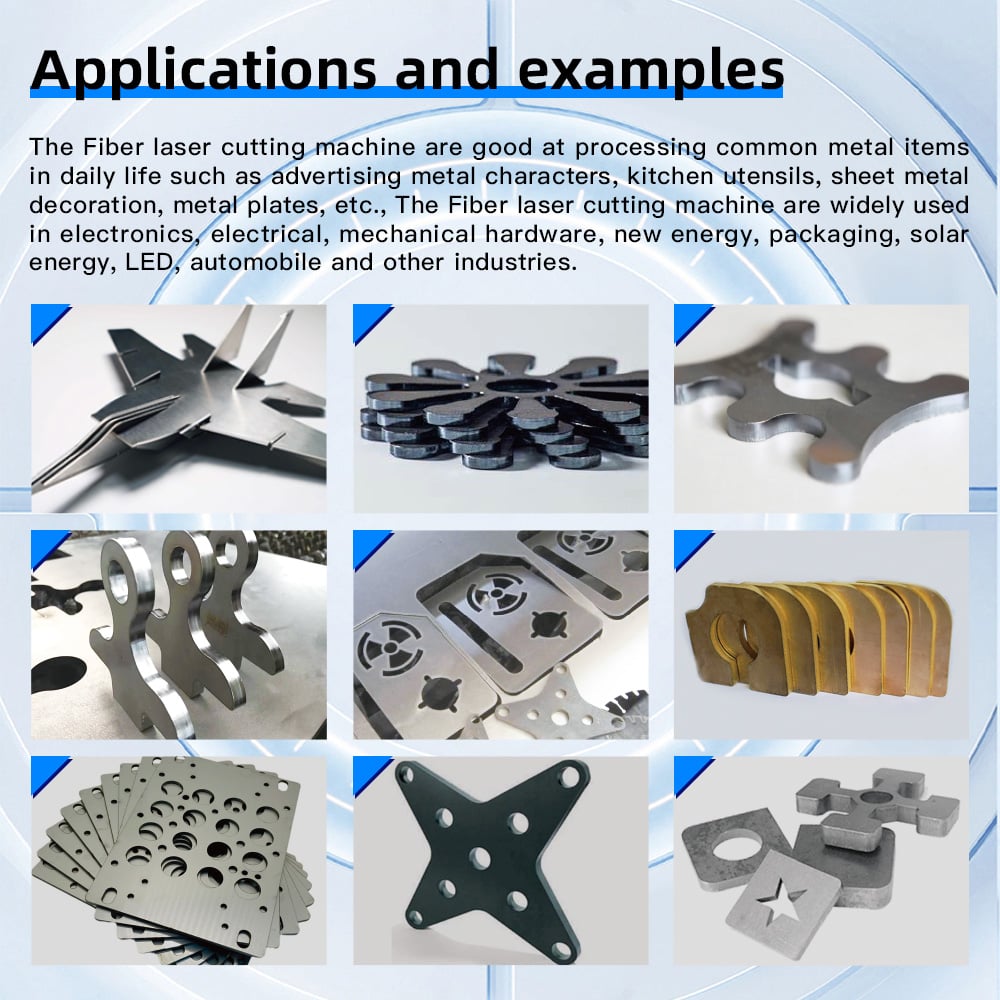

Applications:

The Fiber laser cutting machine are good at processing common metal items in daily life such as advertising metal characters, kitchen utensils,sheet metal decoration, metal plates, etc., The Fiber laser cutting machine are widely used in electronics, electrical, mechanical hardware, new energy, packaging, solar energy, LED, automobile and other industries and also Widely used in cutting stainless steel, carbon steel, alloy steel, copper, brass, silicon steel, galvanized steel, nickel titanium alloy, Inconel, titanium alloy and other metal materials.

Specifications:

AFTER SALES SERVICE AND STRONG GUARANTEE

We have professional customer service and technical team.

Can provide you with 24-hour technical support.

We will provide you with a completeset of machine operation tutorials.

About us

Our Service

1. Warranty for 1 years.

2, Maintenance for whole life.

3, We will provide the consumable parts at an agency price.

4, 24 hours online service,free technical support.

5, Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me.

6, We have manual instruction and CD/U disk for software installation,operation and machine's using and maintenance.

FAQ

Q1. Before sending me an inquiry on our cnc laser, it is better for you to provide me the following information:

(1)Your metal or non-metal material size. Because in our factory, we have different models accordng to working area.

(2)Your materials.

Metal/Acrylic/plywood/MDF?

(3)You want to engrave or cut?

if cut, could you tell me your cutting thickness? Because different cutting thickness need different laser tube power and laser power supplier.

Q2. If we don't know how to use the machine,can you teach us?

Yes, We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online helpsoft-ware.Or we can talk by phone, email or skype

Q3. How long is the delivery time?

For standard machines, it would be 3-5 days: For non-standard machines and customized machinesaccording to client's specific requirements, it would be 7 to 10 days.

Q4. Quality Control:

The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory.Our machine passed CE Certificate, meet European and American standard, were exported to morethan 100 Countries.

Q5. Do you arrange shipment for the machines?

Yes. dear esteemed customers, for FOB or CIF price, we will arrange shipment for you.For EXW price, clients need to arrange shipment by themselves or their agents.
