4 IN 1 WITH SUPER COST-EFFECTIVE
0.7KG SMALLEST SIZE WELDING TORCH
INTERACTIVE TOUCH SCREEN CONTROL SYSTEM
FASTER WELDING SPEED

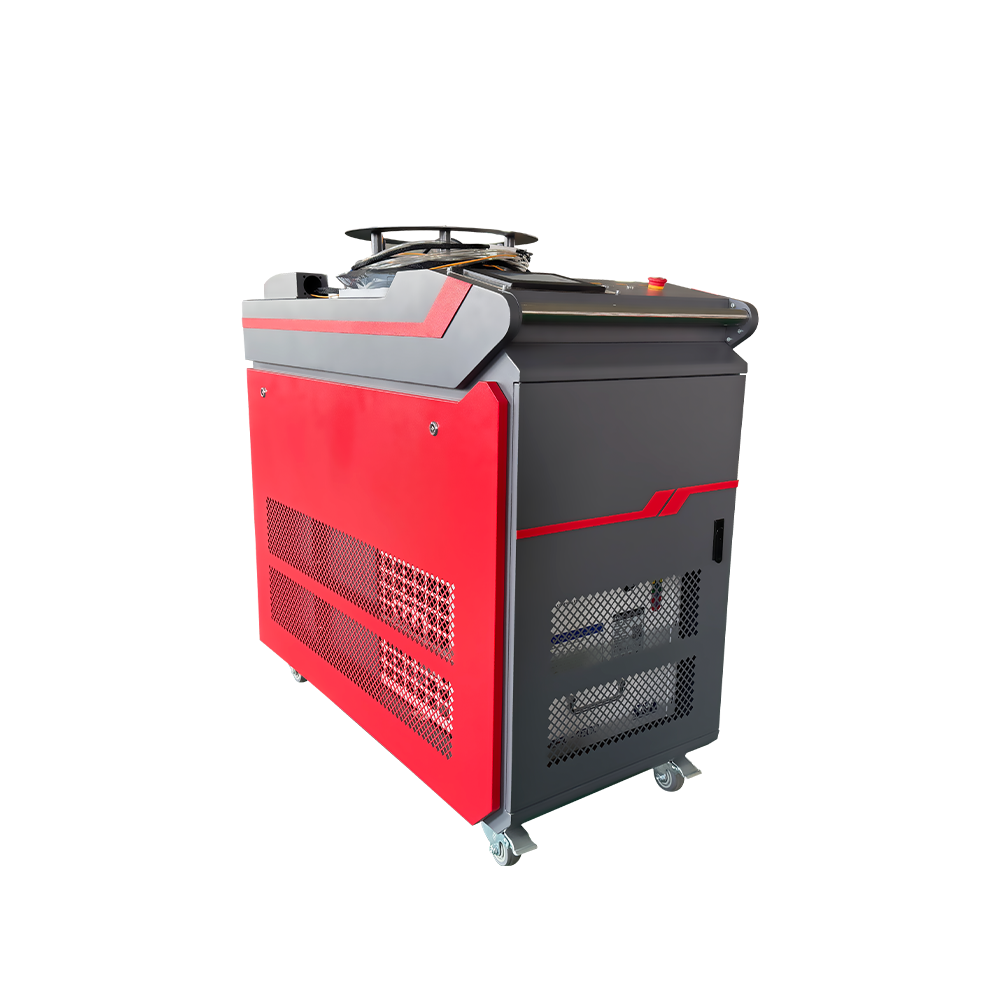

Our laser machine can perform four different tasks: laser welding, laser cleaning, handheld metal cutting, and weld cleaning. There is no need to purchase several laser machines for these different laser processing tasks. Our laser system is very suitable for welding and cutting metal materials such as stainless steel, aluminum alloy, carbon steel, titanium alloy, etc. It can also be used for rust removal.
The handheld laser head has a simple appearance, is small and light, and can be used by hand for a long time. The integrated design of the button and handle is simple and easy to use. It can realize three functions of welding, cleaning, weld seam cleaning and cutting four the intelligent controller according to different usage scenarios, truly realizing four in one functions in one machine.
The  optional brands of fiber lasers include Raycus, RECI, GW, FEIBO, IPG, and MAX. Photoelectric conversion rate exceeds 50%, energy-saving and environmentally friendly. Working life is100, 000 hours.
The intelligent temperature controller of the laser chiller has two temperature control modes, suitable for different usage scenarios; There are multiple settings and fault display functions; The temperature control accuracy can reach ± 0. 5 ℃; Stable refrigeration and easy operation;
Fiber laser welding machines are used for welding, cutting, and cleaning various metal materials, including carbon steel, stainless steel, titanium, aluminum, etc. Widely used in advertising signs, hardware products, automotive parts, medical, electronics, craft gifts and other industries.
| Machine power | 1000w / 1500w / 2000w / 3000w |
| laser type | Continuous |
| Laser source | Fiber laser |
| Cleaning width | 10-200mm |
| Laser wavelength | 1080±5nm |
| Pulse width | 0.05-0.6 |
| Out power stability | <2% |
| Weld thickness | 2-2.5mm/2-2.5mm/3-4mm/5-6mm |
| Power consumption | 7KW / 8.2KW / 9.8KW / 13.9KW |
| Fiber optical length | 10m |
| Model | mini/ Regular |
| Machine size | 1500*750*850mm / 700*1500*1300mm |
| machine weight | 160KGS / 240KGS |
1. Multi functional fiber laser machine, capable of welding, cleaning, welding seam cleaning, and cutting metal materials;
2. Handheld, the bracket cable length is longer;
3. Easy to operate, with welding power conversion and cleaning function, just replace the focusing lens and laser head;
4. The body is small, saves space, and is easy to move
Xianming Laser Co., Ltd. is an international and intelligent laser machinery manufacturer. Our main products including fiber laser cutting machine, fiber laser welding machine, CO2 laser engraving machine, laser marking machine, cleaning machine, and other laser equipments. We have launched over 60 types of laser products, covering applications in various industries such as automotive, aerospace, medical, metalworking, and electronics.Can satisfy different production needs of customers.
All our machines obtained international certifications such as CE, Rohs，and FCC. Our products have been sold to multiple countries such as the United States, Mexico, Australia,Canada,Brazil,Switzerland and have won unanimous praise from domestic and foreign users.
We also welcome OEM and ODM orders. Whether selecting from our current models in the catalog or seeking engineering assistance for your application, you can contact our customer service center regarding your procurement requirements.
