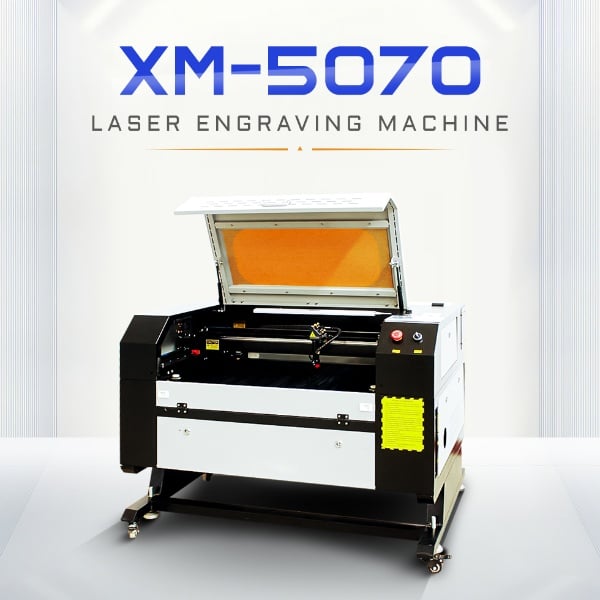

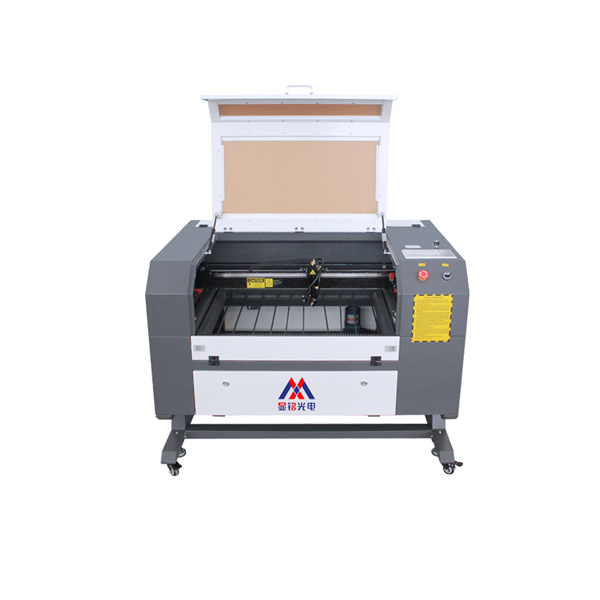

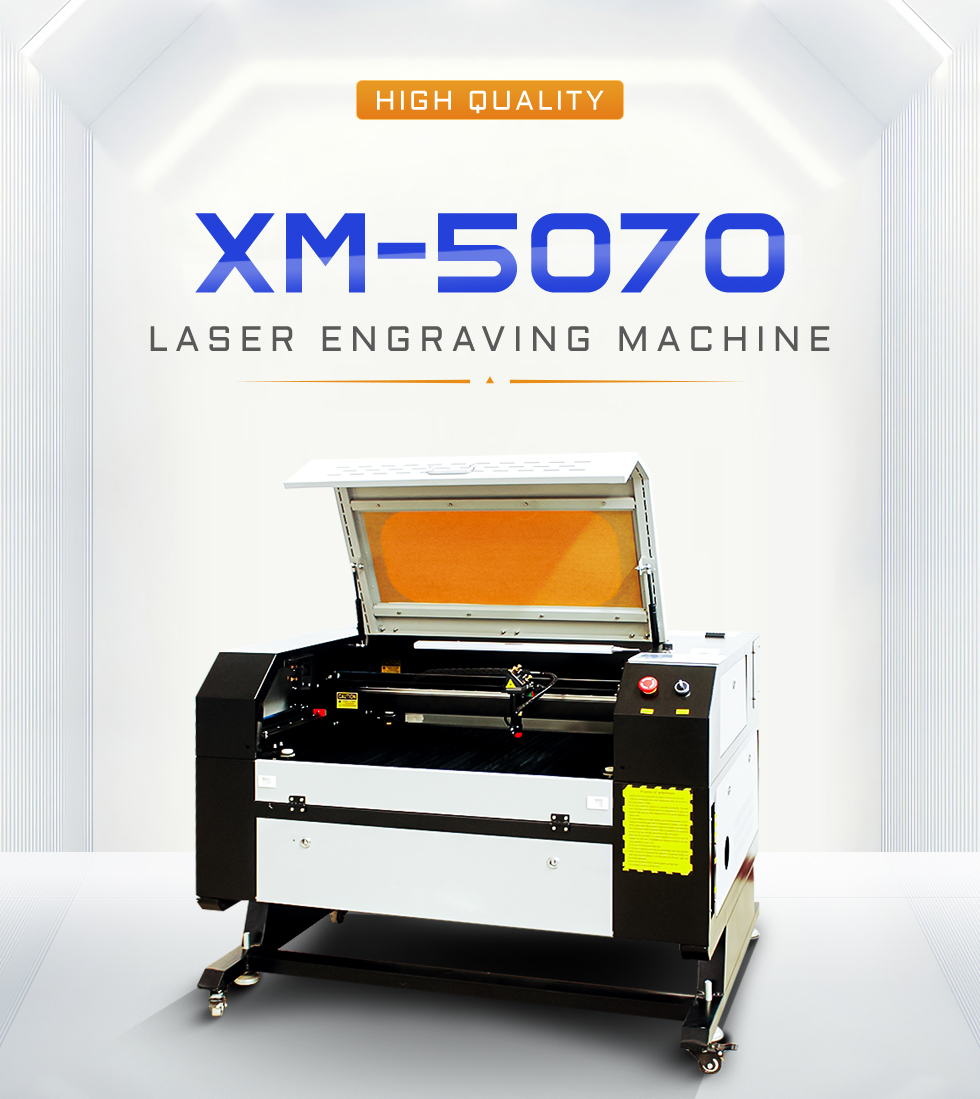

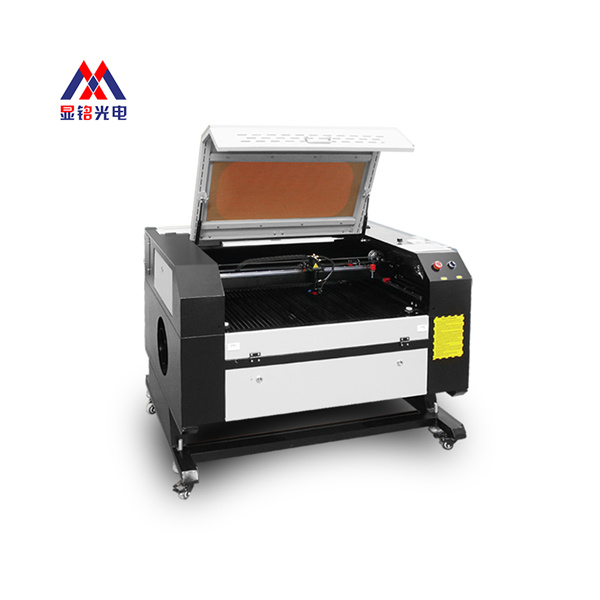

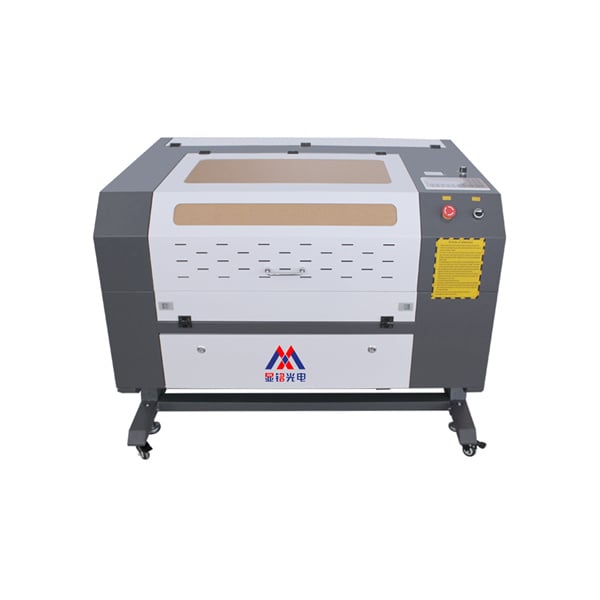

Model: XM-5070 laser engraving machine
Working area: 700*500mm
Laser Type: Sealed-off CO2 Laser Tube
Graphic Format Supported:AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
Cooling Mode:water-cooling
|
Minimum Order Quantity: |
1 |
|
Packaging Details: |
1.Whole film packaging Sheet laser machine; 2.Anti-collision package edge; 3. Fumigation-free plywood wooden box and pallets with iron binding belt. |
|
Delivery Time: |
3-14Days |
|
Payment Terms: |
TT (Telegraphic Transfer), Western Union, Paypa, Alibaba Trade Assurancel. |
|
Supply Ability: |
2000 Set/Sets per Month |
XIANMING Laser CO2 Laser Engraving Machine with different working area,laser power or working table,which applications engraving and cutting on acrylic,wood, fabric,cloth, leather rubber plate,PVC,paper and other kinds of non metal materials.5070 laser cutting machine are widely used in clothing, shoes,luggage,computer embroidery clipping,model, electronic appliances,toys, furniture, advertising decoration, pack-aging and printing,paper products,handicrafts.Household appliances,laser processing and other industries.

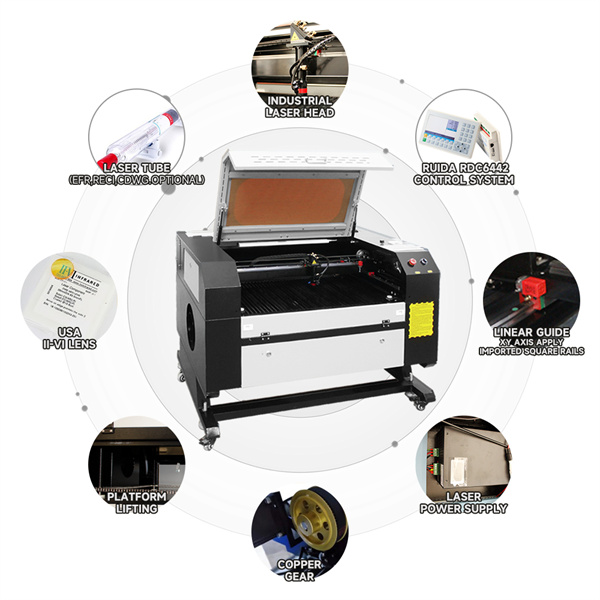

Closed Co2 laser tube, long life, stable power.Installation of reinforcement settings, the laser tube is not easy to collide and cause damage when moving the machine(EFR,RECI,CDWG.Optional)
High precision retractable laser head, easy to adjust focal length, equipped with red light positioning system, accurate positioning, reduce material loss. Auto-blowing to protect laser head and prevent the laser burning
Use copper wheels to better drive the belt to work, wear-resistant and durable.(Optional)
XY axis apply imported 15mm squ-are rails.Ensures stable operation,high precision and long life.
Imported USA II-VI Lens, suitable for various environments, and has high precision and high speed.
The brand belt, wear resistance good stability, compact structure and low noise.
The current lead and breather pipe are included in it.Thicker,more stable Keep the laser head from shaking
45°mirror adjustment set. Easy to adjust laser path.
XM Laser CO2 Laser Engraving Machine with different working area,laser power or working table,which application is engraving and cutting on acrylic,wood,fabric,cloth,leather,rubber plate,PVC,paper and other kinds of nonmetal materials.
CO2 laser engraving cutting machine are widely used in clothing, shoes,luggage,computer embroidery clipping,model, electronic appliances,toys, furniture, advertising decoration, pack-aging and printing,paper products,handicrafts.Household appliances,laser processing and other industries.
|
Model |
XM 5070 laser engraving machine |
|
Positioning Mode |
Red Light |
|
Engraving area |
700*500mm |
|
Laser Power |
40w/50w/60w/80w/100w |
|
Engraving Speed |
1500mm/s |
|
Laser Tube |
Sealed CO2 glass laser tube |
|
Cooling System |
Water Cooling and Protection System |
|
Minimum Character |
1mm |
|
Power Supply |
220V(or110V)+/-10% 50Hz |
Simple rotary axis
Standard rotary axis
Water cooler
1. Aluminum knife or honeycomb table. Two kinds of of tables are available for different material.
2. CO2 Glass sealed laser tube China famous brand (EFR,RECI). good beam mode stability,long service time.
3. Imported lens and mirrors. High transmittance, good focusing, reflection effect.
4. Ruida Controller system, support online/offline working, English language system, adjustable cutting speed and power.
5. High accuracy stepper motors and drivers. Belt transmission.
6. Tiwan Hiwin Linear square guide rails, higher precision.
7. Open style, the front and back of the machine is open which is possible for longer material, breakthrough the limit of the workpiece length.
8. Rotate cutting available
1, Warranty for 1 years.
2, Maintenance for whole life.
3, We will provide the consumable parts at an agency price.
4, 24 hours online service,free technical support.
5, Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me.
6, We have manual instruction and CD/U disk for software installation,operation and machine's using and maintenance.
Q1. Before send me an inquiry on our cnc laser, it is better for you to provide me the following information:
1) Your metal or non-metal material size. Because in our factory, we have different models according to working area.
2) Your materials.
Metal/Acrylic/Plywood/MDF?
3)You want to engrave or cut?
If cut,could you tell me your cutting thickness? Because different cutting thickness need different laser tube power and laser power supplier.
Q2. If we don't know how to use the machine, can you teach us?
Yes. We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online helpsoftware. Or we can talk by phone,email or skype.
Q3. How long is the delivery time?
For standard machines, it would be 3-5 days; For non-standard machines and customized machines according to clien's specific requirements, it would be 7 to 10 days.
Q4. Quality Control:
The whole production procedure will be under regular inspection and strict quality control. The complete machine will be stested to make sure they can work very well before being out of factory. Our machine passed CE Certificate, meet European and American standard, were exported to more than 100 Countries.
Q5. Do you arrange shipment for the machines?
Yes. For FOB or CIF price,we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
