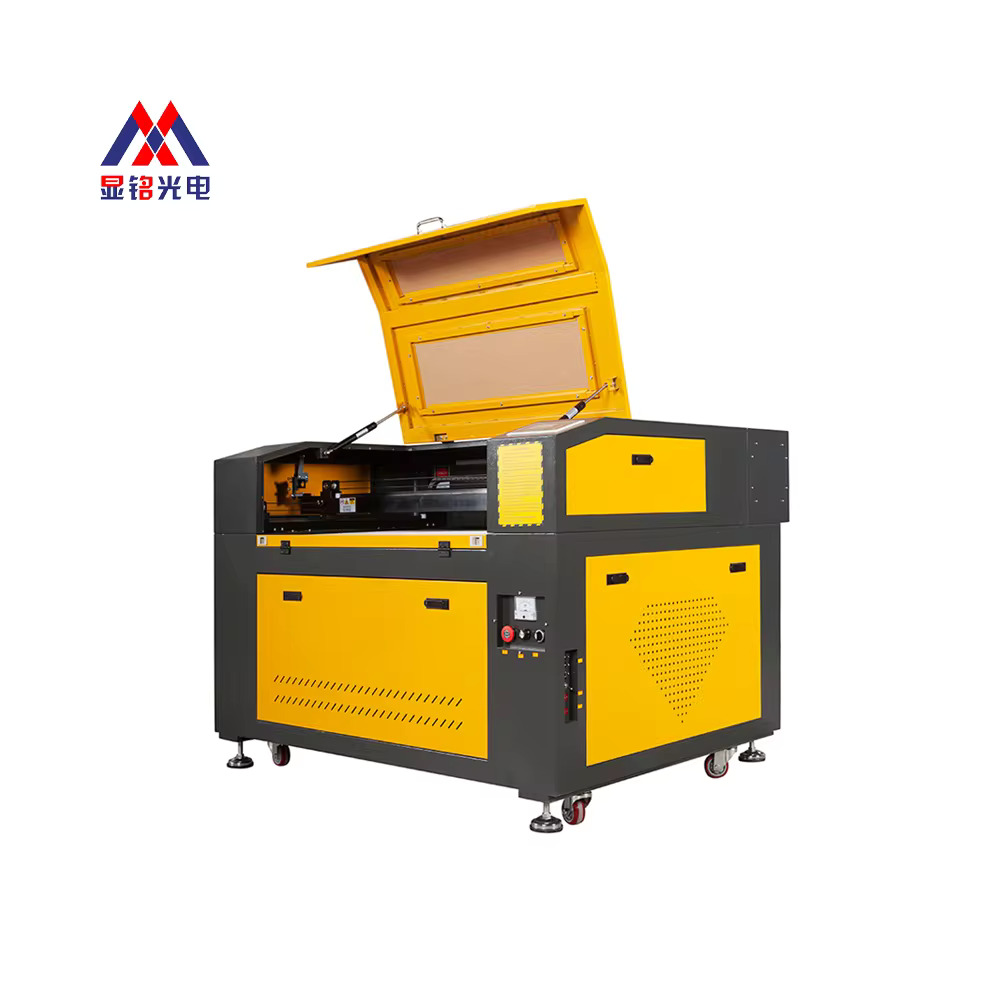

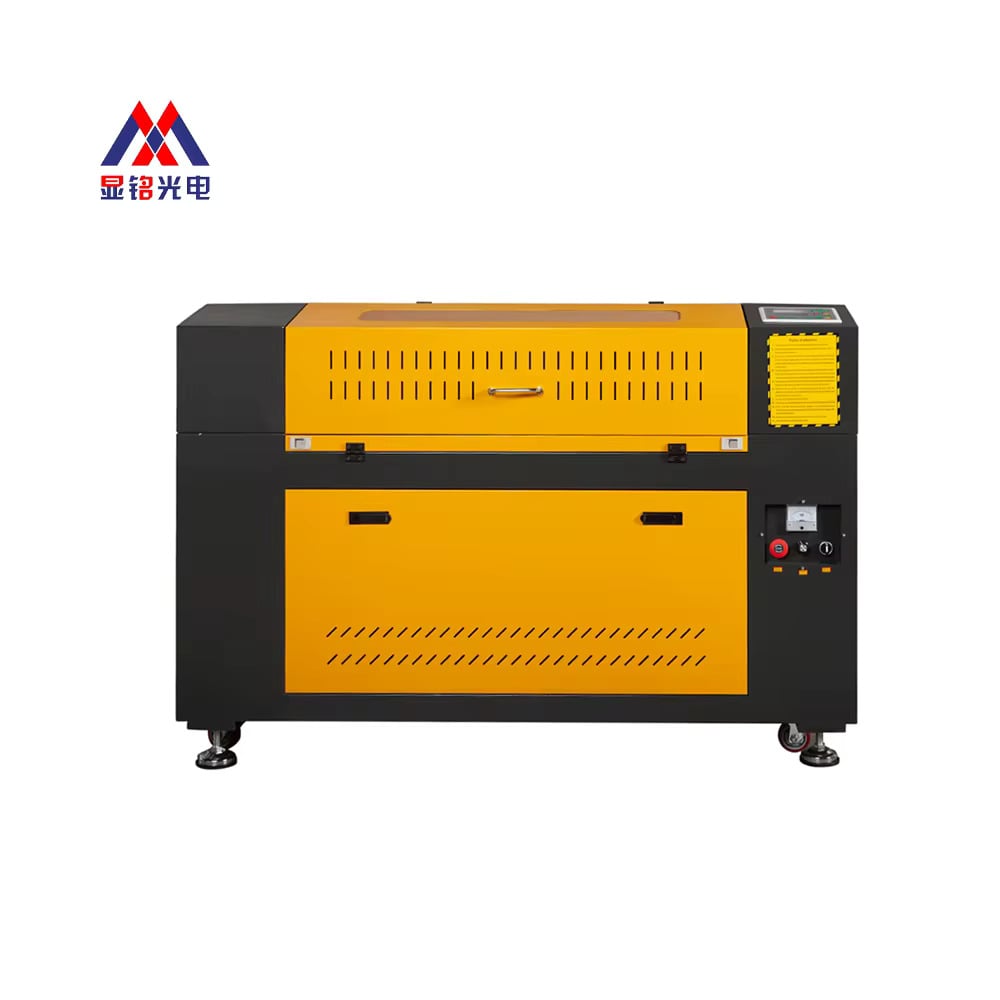

Model: XM-9060
Working area: 900*600mm
Laser Type: CO2
Graphic Format Supported:AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
Cooling Mode:water-cooling
|
Minimum Order Quantity: |
1 |
|
Packaging Details: |
1.Whole film packaging Sheet laser machine; 2.Anti-collision package edge; 3. Fumigation-free plywood wooden box and pallets with iron binding belt. |
|
Delivery Time: |
3-14Days |
|
Payment Terms: |
TT (Telegraphic Transfer), Western Union, Paypa, Alibaba Trade Assurancel. |
|
Supply Ability: |
2000 Set/Sets per Month |

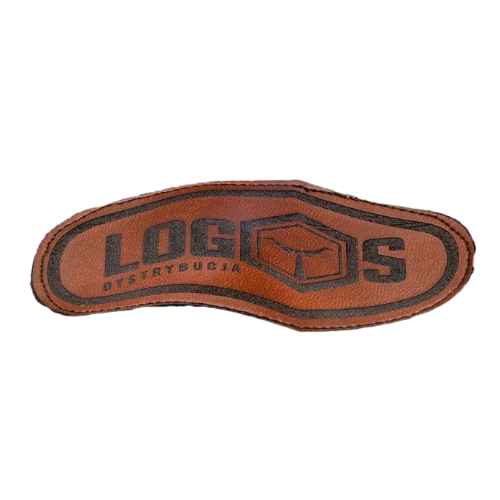

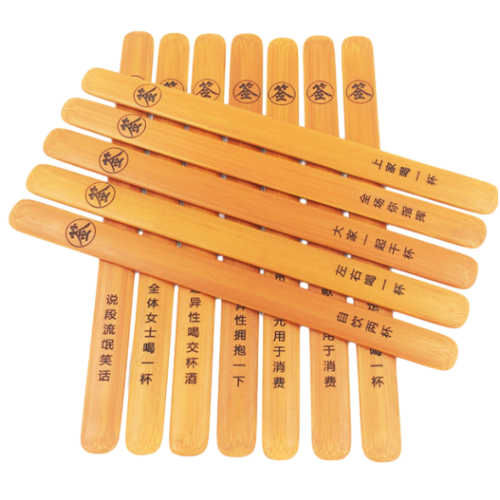

XIANMING Laser CO2 Laser Engraving Machine with different working area,laser power or working table, which application is engraving and cutting on Acrylic, leather, wood, rubber, double-color board, MDF, plywood, bamboo, paper, cardboard, marble, granite, stone, glass, fabric, textile, coated metal, painted metal, anodized aluminum and other kinds of non metal materials. 9060 laser cutting machine are widely used in Arts and crafts, advertising, decoration, wood working, leather manufacturing, packaging, printing, model making, furniture, clothing and brand making , and other industries.
Double the cutting speed, high configuration,low price, high cost performance.

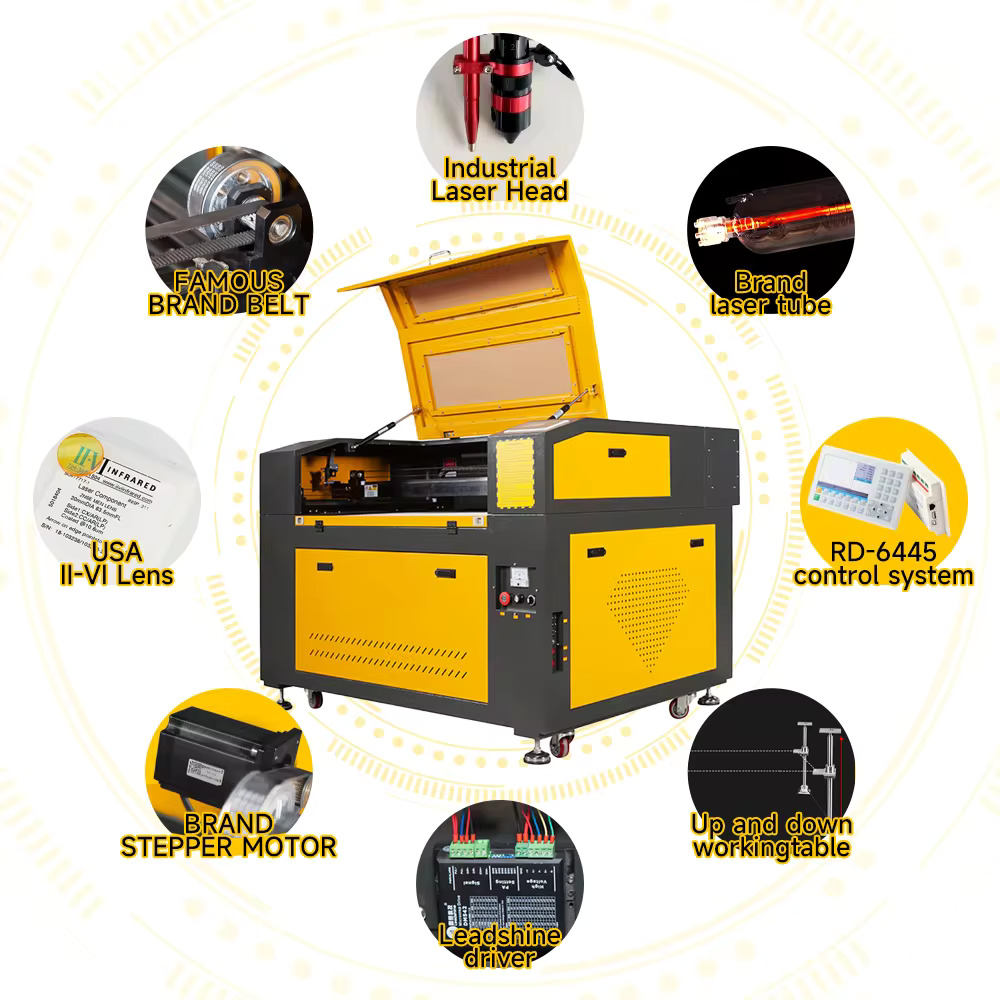

Brand CO2 laser tube.Multiple power options Delicate light spot, strong focusing effect,improve cutting efficiency
Red light positioning, automatic blowing protection enclosed dust-proof laser head, adjustable height.High light transmittance, fine carving, strong cutting force.
Stable light spot, accurate focal length, high efficiency

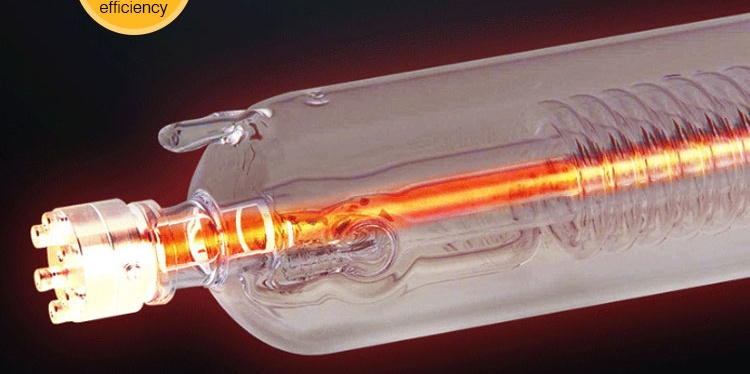

This type of laser tube provides users with a selection of power options ranging from 50W to 300W, with a lifespan of up to 10, 000 hours. It offers benefits such as extended lifespan, comprehensive functionality, fast processing speed, high processing quality and efficiency, stable performance, and low maintenance costs.

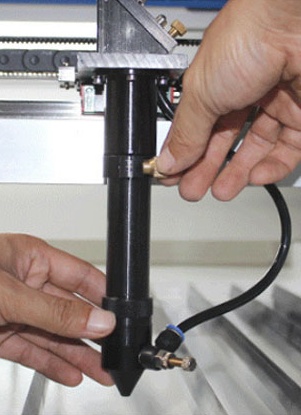

High precision retractable laser head, easy to adjust focal length, equipped with red light positioning system, accurate positioning, reduce material loss. Auto-blowing to protect laser head and prevent the laser burning

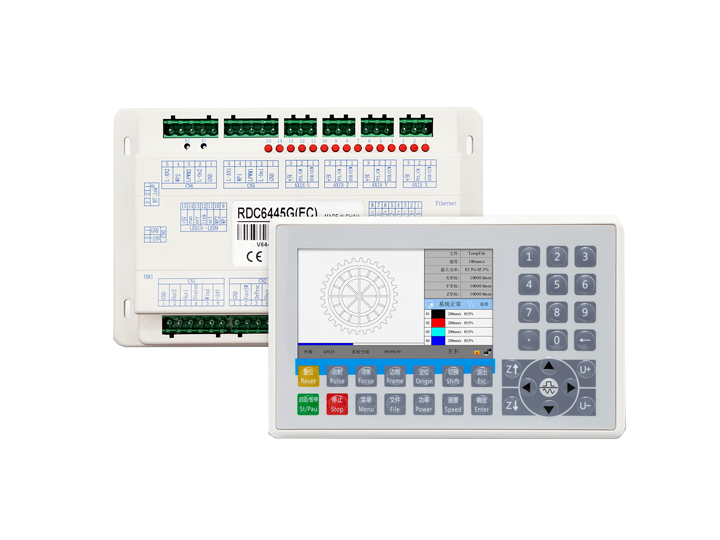

The RD6445 system is the latest generation of laser engraving/cutting control system developed by Ruida Technology. This control system has better hardware stability and better resistance to high voltage and electrostatic interference.The control panel supports Chinese, English, French, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian and other languages.
Interface: USB2.0 interface support connect to computer by USB cable, it also support offline work.

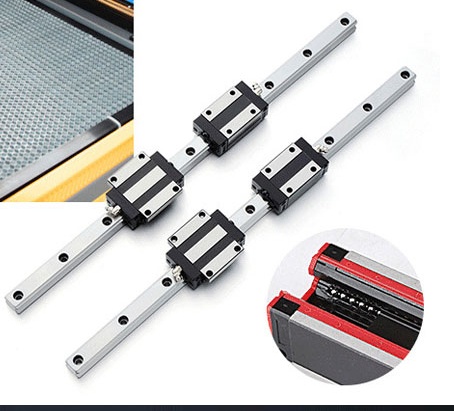

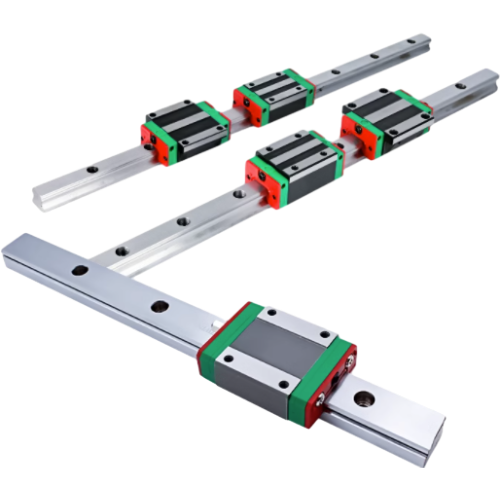

XY axis apply imported square rails. Ensures stable operation, high precision and long life

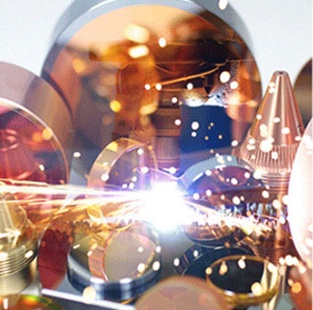

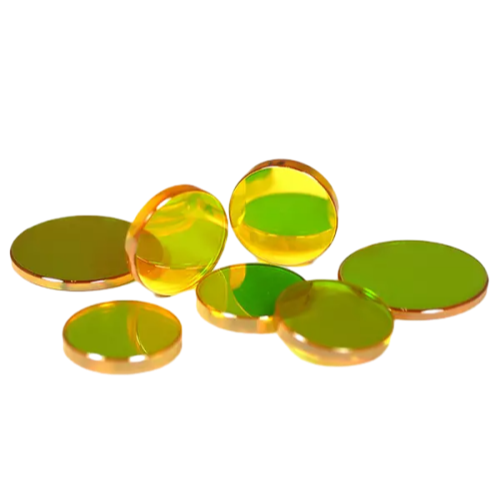

Imported USA II-VI Lens, suitable for vanous environments, and has high precision and high speed.

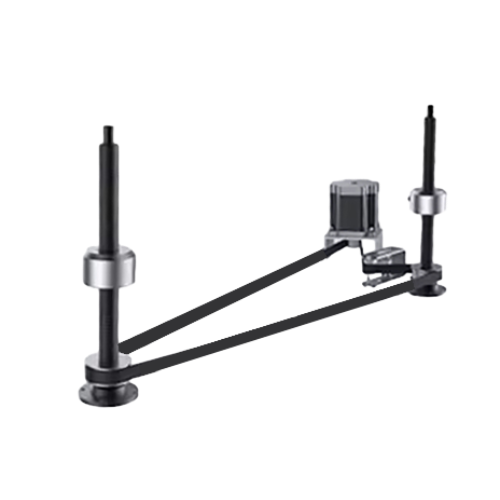

It allows you to process materials of various sizes, can be lifted in Z direction (up-and-down) to get more working space.
XM Laser CO2 Laser Engraving Machine with different working area,laser power or working table,which application is engraving and cutting on acrylic,wood,fabric,cloth,leather,rubber plate,PVC,paper and other kinds of nonmetal materials.
CO2 laser engraving cutting machine are widely used inclothing,shoes,luggage,computer embroidery clipping,model,electronic appliances,toys,furniture,advertising decoration,packing and printing,paper products,handicrafts,Household appliances,laser processing and other industries.
|
Model |
XM-9060 |
|
Worktable |
Honeycomb |
|
Engraving area |
600*900mm |
|
Laser Power |
60w/80w/100w |
|
Engraving Speed |
500mm/s Max |
|
Cutting Speed |
60mm/s |
|
Graphic Format Supported |
PLT/DXF/BMP/JPG/GIF/PNG/TIF |
|
Cutting Thickness(acrylic) |
0-15mm |
|
Laser Tube |
Sealed CO2 glass laser tube |
|
Cooling System |
Water Cooling and Protection System |
|
Minimum Shaping Character |
1*1mm |
|
Resolution Ratio |
0.0254mm(1000dpi) |
|
Power Supply |
220V(or110V)+/-10% 50Hz |
|
Resetting Positioning accuracy |
≤ 0.01mm |
Simple rotary axis
Standard rotary axis
Water cooler
1. Blade or honeycomb table.Two kinds of of tables are available for different material
2.CO2 Glass sealed laser tube China famous brand (EFR, Reci), good beam mode stability, long service time.
3. Imported lens and mirrors. High transmittance, good focusing, reflection effect.
4. Ruida Controller system, support online/offline working, English language system, adjustable cutting speed and power.

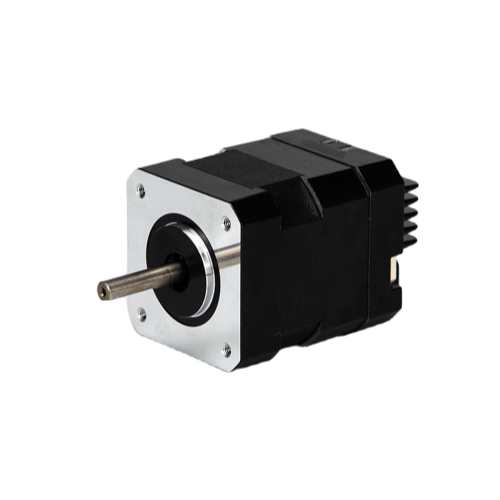

5 High accuracy stepper motors and drivers. Belt transmission.
6. Tiwan Hiwin Linear square guide rails, higher precision.
7. Open style, the front and back of the machine is open which is possible for longer material, breakthrough the limit of the workpiece length.
8. Rotate cutting available
1, Warranty for 1 years.
2, Maintenance for whole life.
3, We will provide the consumable parts at an agency price.
4, 24 hours online service,free technical support.
5, Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me.
6, We have manual instruction and CD/U disk for software installation,operation and machine's using and maintenance.
Q1. Before send me an inquiry on our cnc laser, it is better for you to provide me the following information:
1) Your metal or non-metal material size. Because in our factory, we have different models according to working area.
2) Your materials.
Metal/Acrylic/Plywood/MDF?
3)You want to engrave or cut?
If cut,could you tell me your cutting thickness? Because different cutting thickness need different laser tube power and laser power supplier.
Q2. If we don't know how to use the machine, can you teach us?
Yes. We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online helpsoftware. Or we can talk by phone,email or skype.
Q3. How long is the delivery time?
For standard machines, it would be 3-5 days; For non-standard machines and customized machines according to clien's specific requirements, it would be 7 to 10 days.
Q4. Quality Control:
The whole production procedure will be under regular inspection and strict quality control. The complete machine will be stested to make sure they can work very well before being out of factory. Our machine passed CE Certificate, meet European and American standard, were exported to more than 100 Countries.
Q5. Do you arrange shipment for the machines?
Yes. For FOB or CIF price,we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
