Commercial terms of products:

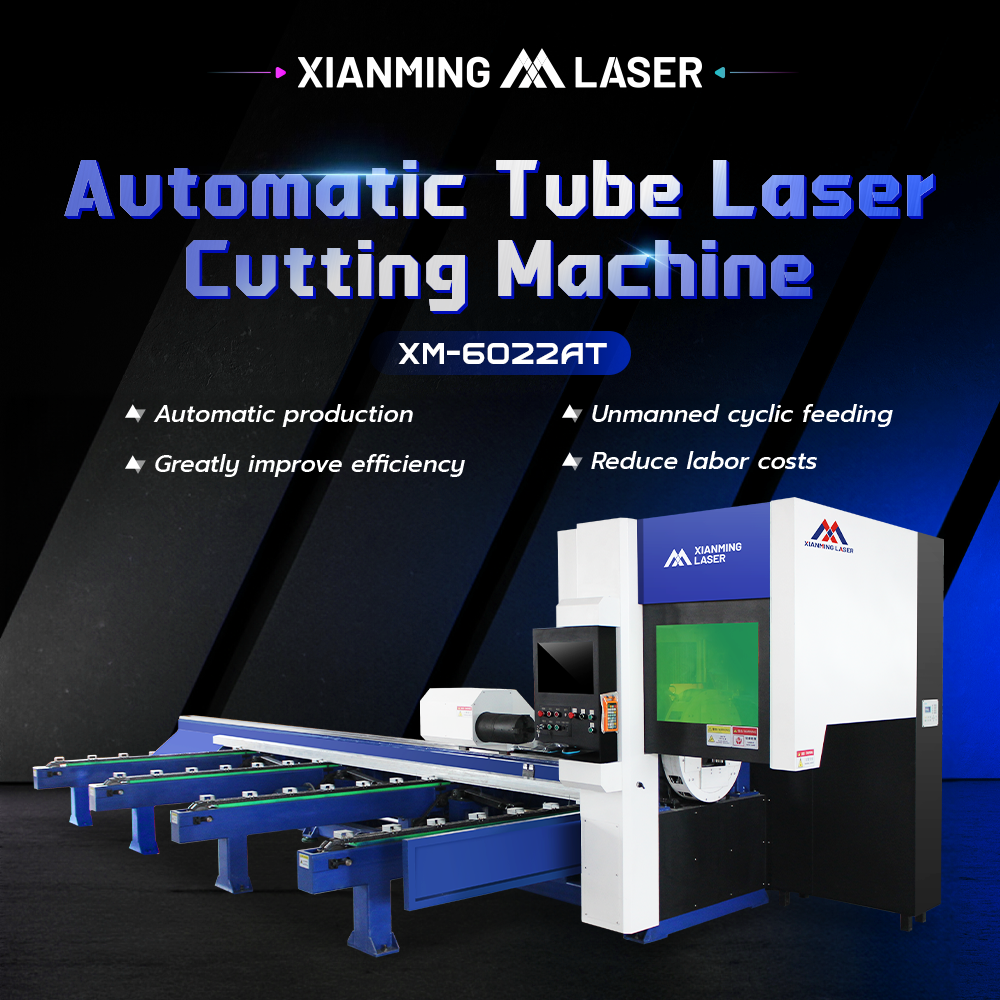

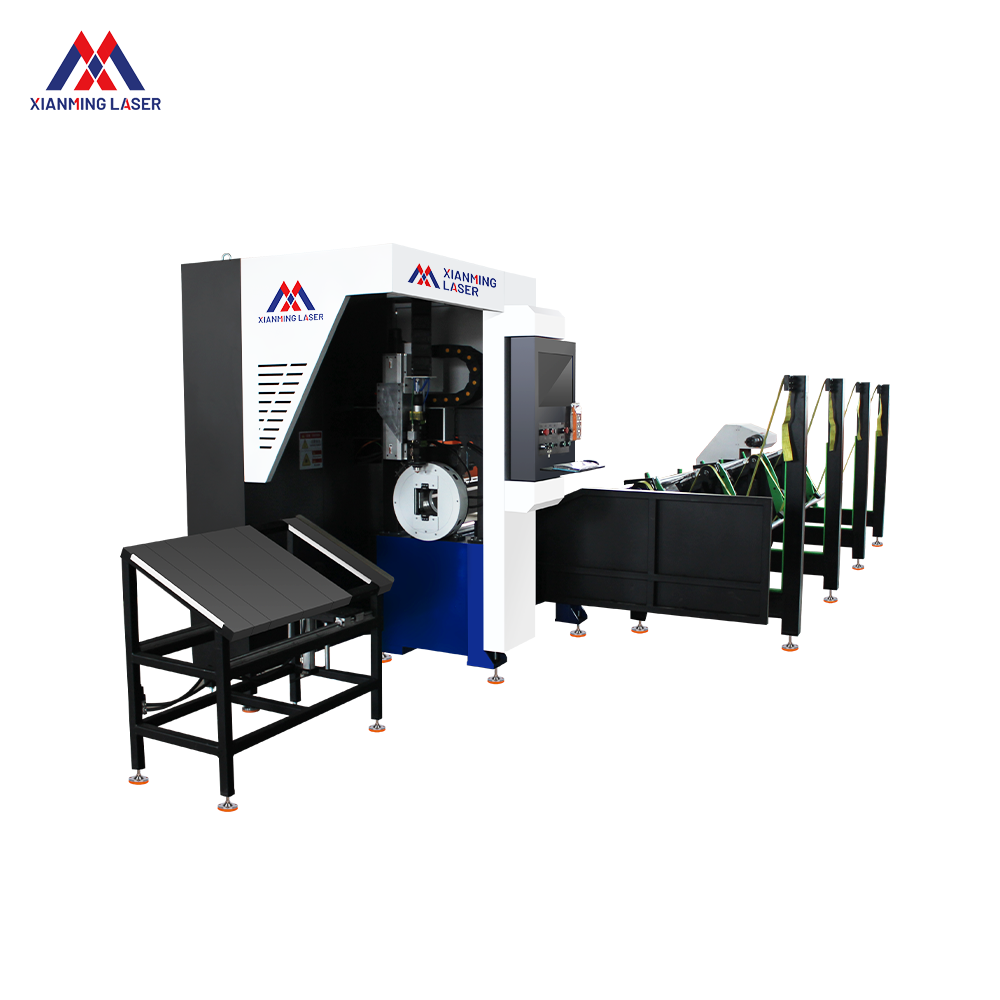

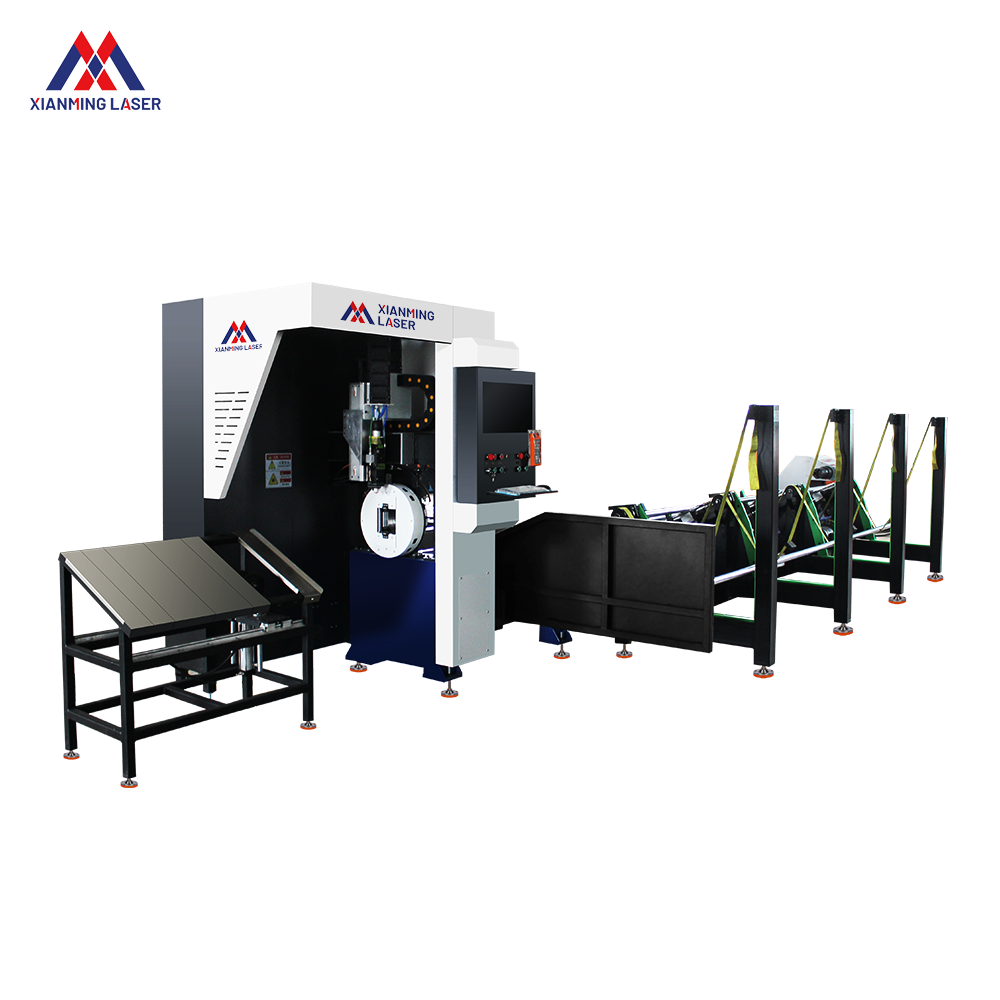

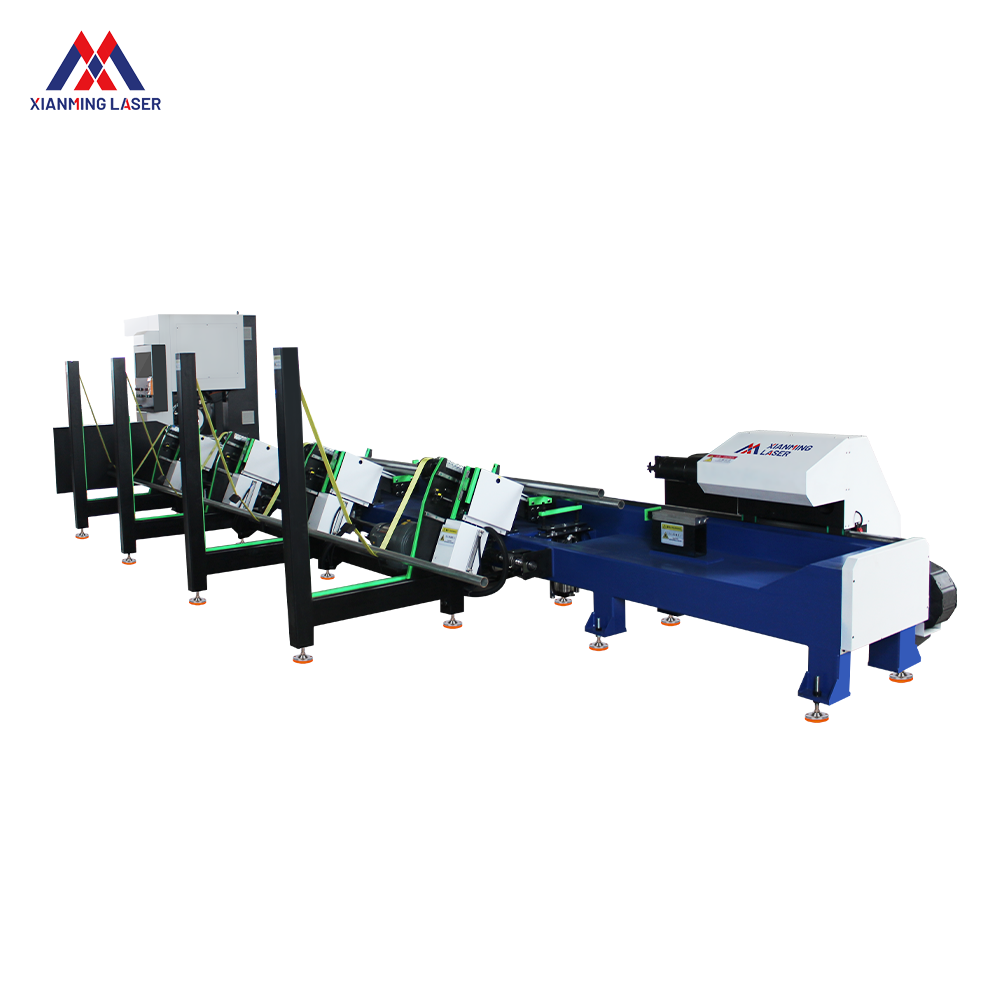

Specifically designed for high volume cutting of tubes and pipes provide far greater efficiency than normal laser systems when cutting pipes and tubular metals.Tube and rectangular tube can finish full automatic feeding without human operation. The fast corner response improves cutting efficiency greatly. The work pieces can be unloaded automatically in different areas after cutting.

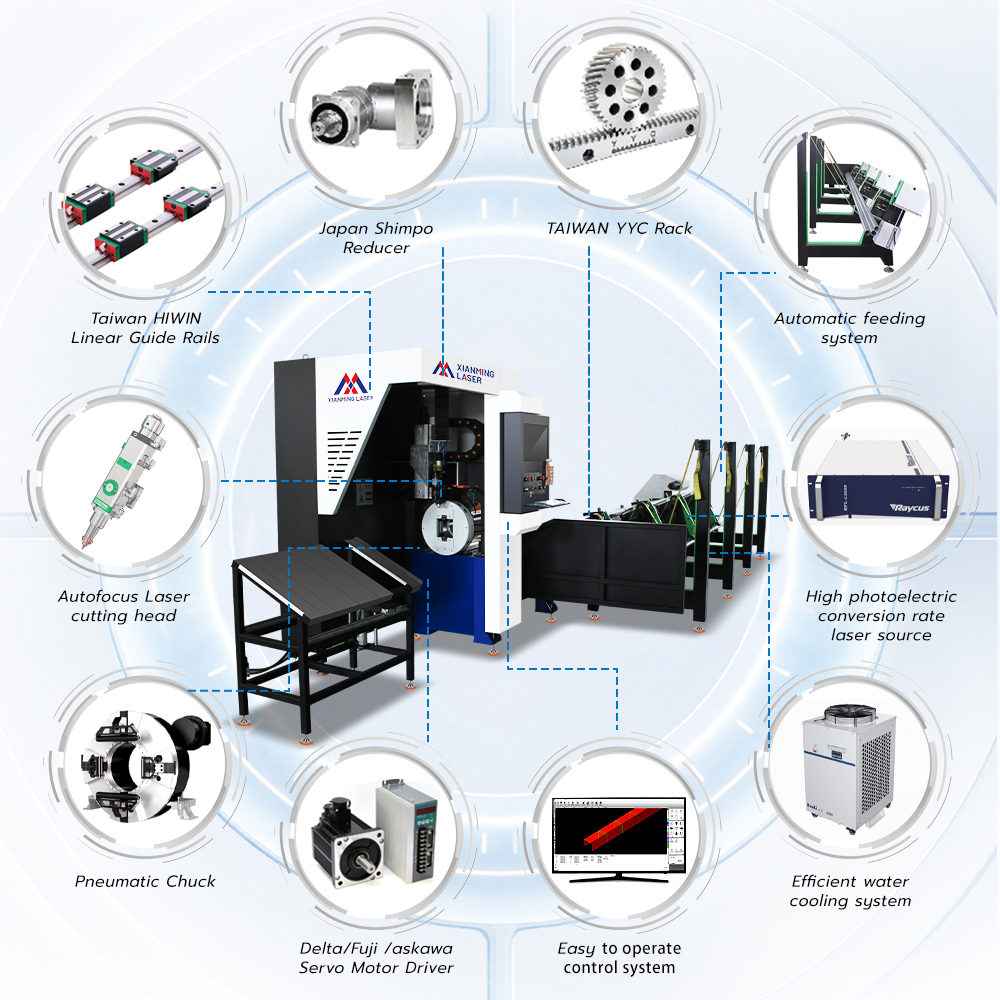

CHARACTERISTICS:

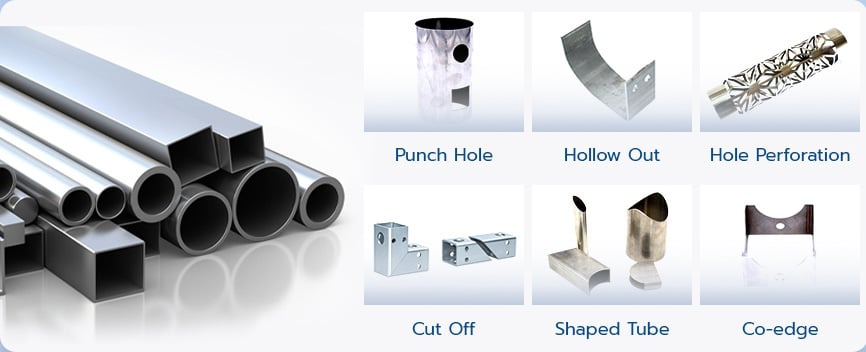

01. Wide range of pipe clamping: Round tube and Square tube side length is 6000mm φ10-120mm. Support the cutting of various shapes of pipe materials, such as I-beam, channel steel, angle steel, elliptical pipe, waist pipe, multi-deformed pipe, etc.
02. One-piece bed frame: The unique industrial structure design gives it maximum stability and higher vibration resistance and damping quality. The bed is annealed at a high temperature to eliminate internal stress. The whole machine is highly integrated, with good system performance and long life.
03. Fully automatic self-centering pneumatic chuck: Fully automatic pneumatic chuck, precision gear transmission; Powerful automatic centering function, convenient and efficient; Pneumatic super strong clamping force, high cutting accuracy.
04. Cutting Head Specialized for tube cutting: Specialized smart cutting head makes various types of tube cutting easier; Tapered pointed design makes it easy to prevent a collision when cutting sharp tubes; New collimation and protection lenses, better protection for the core components.
05. Professional tube cutting system: Real-time core deviation compensation. High precision realization of perforation. Support corner crafting individually set. Support advanced technology such as cooling point, sharp corner ring cutting, release corner.
06. Fully automatic feeding system: High-rigidity material rack design, fast material changing and feeding speed and good stability, can realize automatic conveying, cutting, loading and unloading.

PRODUCT DETAILS:

STABLE MACHINE BED AND GANTRY STRUCTURE

Machine bed and the gantry structure adopt plate weldingstructure.After heat treatment and annealing to removestress,the structure is stable and the rigidity is good.

FRACTIONAL AUTOMATIC SUPPORT INSTALLATION

It employs intelligent tube support design, which can solve the deformation problems in the process of long tube cutting.

DOUBLE CHUCK CLAMPING

Clamping round tube p10-160mm. Servo motor and reducer are driven synchronously to ensure processing accuracy.Both front and rear chucks are pneumatically tightened.

TUBE & PROFILE CUTTING SOFTWARE

TubePro designed for professional tube cutting, sup production of tube and profile of various shap works with TubesT nesting software seamlessly to re technique setting, advanced toolpath generation nesting for standard and special productionTubePro designed for professional tube cutting, supports production of tube and profile of various shape. it works with TubesT nesting software seamlessly to realize technigue setting advanced toolpath generation and nesting for standard and special production need.

INTELLIGENT AUTO-FOCUSING LASER HEAD

Freely design and instantly cut all kinds of complex graphics or text products, trigger more new tube design inspirations, help you quickly complete the development of new products, and reduce R&D costs.

REAR CHUCK

Tha eose chuele sith elsaa cs clsmn tha enacisl-chsnadlpipe keep the pipe fiting does t lipand hathe stroke is laroe the tvpe of claw is small easv to usel the clamninn forre ie etronn can realive the heauy ninel Fitting processing, and the integral support base structure, improve the support bearing stability.

LASER SOURCE

Professional cutting laser source. With high-quality beam quality, high light conversion efficiency, the light emitting mode is more conducive to achieving a good and stable cutting effect with high quality.

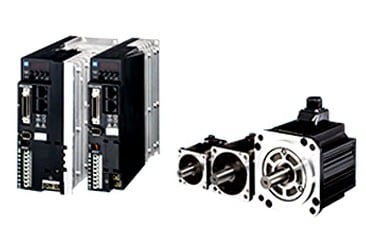

SERVO DRIVER AND SERVO MOTOR

Servo motors stabilise and drive the beam to control the movement of the Xy7 axis accordino to the proorammed instructions to complete the cutting operations with complex precision, and the user can adjust the parameters according to their needs.

Description:

Fiber laser tube cutting machine provides exceptional versatility, capable of working with a wide range of materials including carbon steel, stainless steel, aluminum alloy, brass, copper, galvanized pipe, silicon steel tube, electrolytic pipe, titanium alloy, manganese alloy, etc.. It effortlessly handles various shapes and sizes of metal tubes, accommodating diverse project requirements.

Applications:

Applicable materials: The sheet metal laser cutting machine has extensive applications in decoration, infra-structure, construction, microelectronic, advertising, kitchen appliance, automobile andother equipment manufacturing, and other industries.

Specifications:

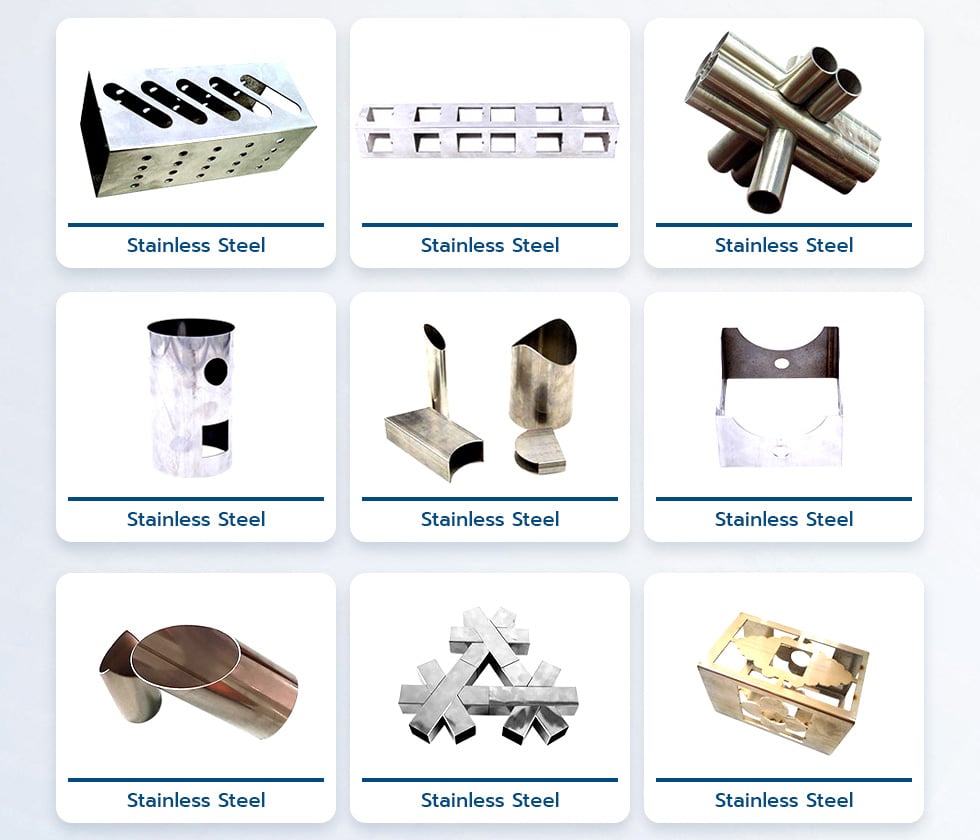

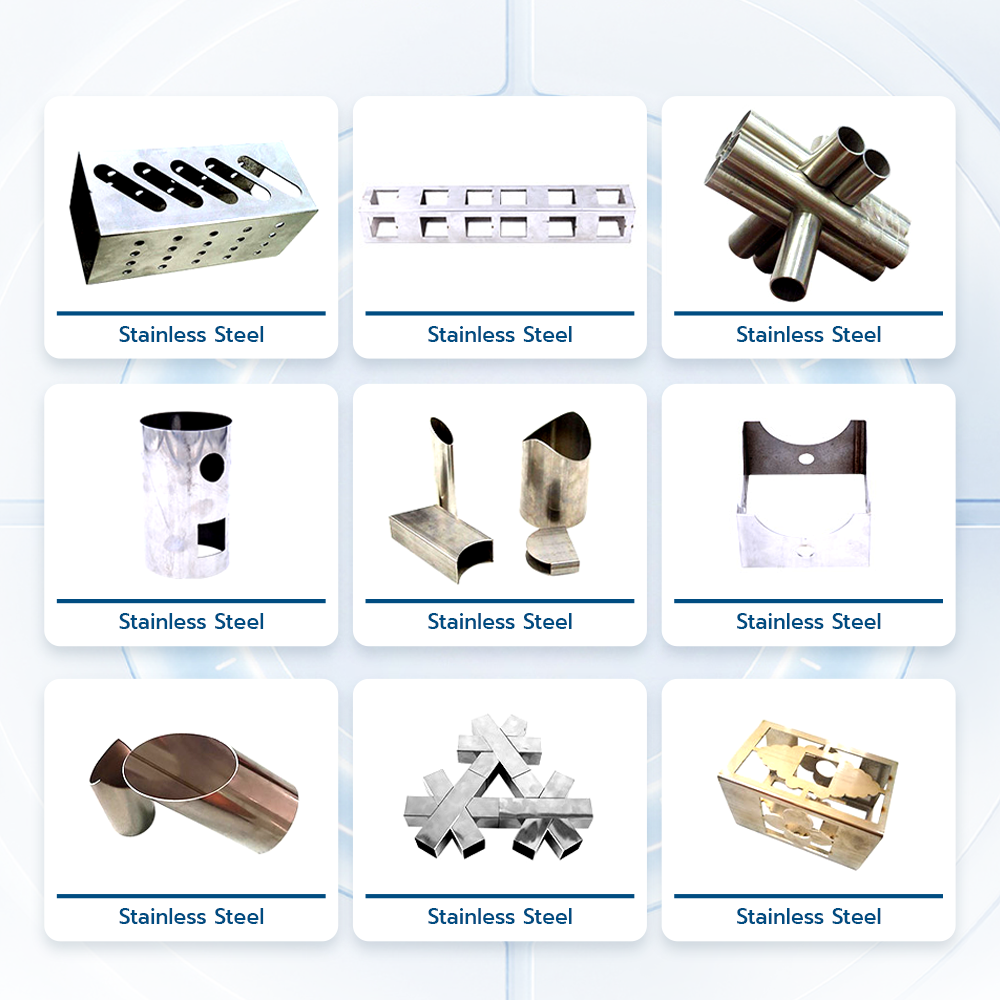

Samples Show - High-end CNC Tube Fiber laser cutting machine

About us

Our Service

1. Warranty for 1 years.

2, Maintenance for whole life.

3, We will provide the consumable parts at an agency price.

4, 24 hours online service,free technical support.

5, Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me.

6, We have manual instruction and CD/U disk for software installation,operation and machine's using and maintenance.

FAQ

Q1. I knew nothing about this machine, what kind of machine i should choose?

Very easy to choose. Just tell us what you want to do by using CNC laser machine, then let us give you perfect solutions and suggestions.

Q2. What can it cut? How thick can it cut at most?

Laser machine for metal usually deal with carbon steel, stainless steel, aluminum, brass and alloy. The maximum thickness is different between different models and materials. Please check in the product introduction page.

Q3. Can I visit your factory?

Of course.Please contact us any time . We will arrange in advance.

Q4. Do you have engineer to teach me/my workers?

Yes, we offer free video training for each customer. We promise to help until everything gets right.
